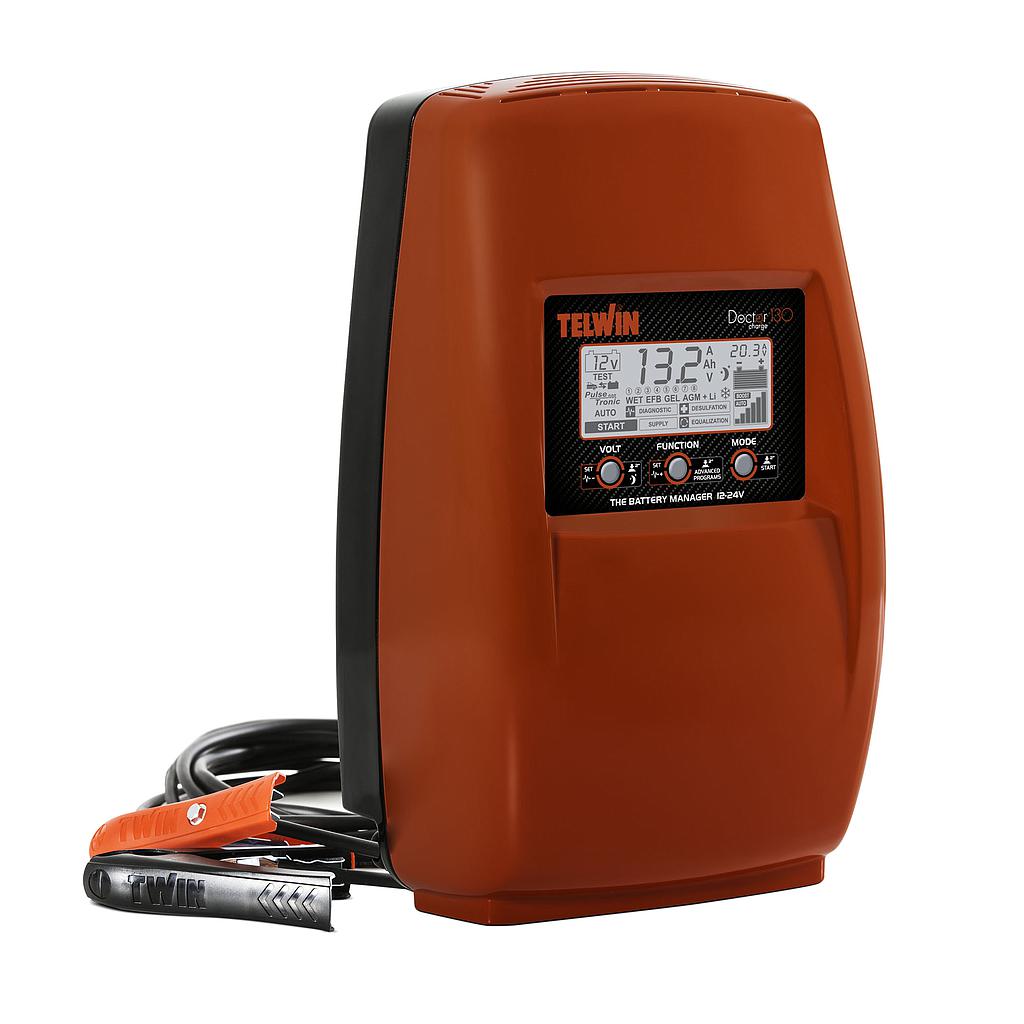

Telwin DOCTOR CHARGE 130 230V 12V/24V (1,8 KW)

EFFECTIVE CHARGING CURRENT: 140 /70 A

DIMENSIONS: 20 x 26 x 34 cm

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-291 20 / 60 A

WEIGHT: 6 kg

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29180 A

CHARGE POWER: 1,8 KW

MIN. RATED REFERENCE CAPACITY: 20Ah

PIECES/PALLET: 30 pz/pallet

START POWER: 2 KW

MAX RATED REFERENCE CAPACITY: 1200 A

PIECES/PALLET - B: 24 pz/pallet-B

CHARGING VOLTAGE: 12 / 24 V

ADJUSTMENT POSITIONS: 7


Included Accessories

 125000


Details

DATASHEET


MANUAL
