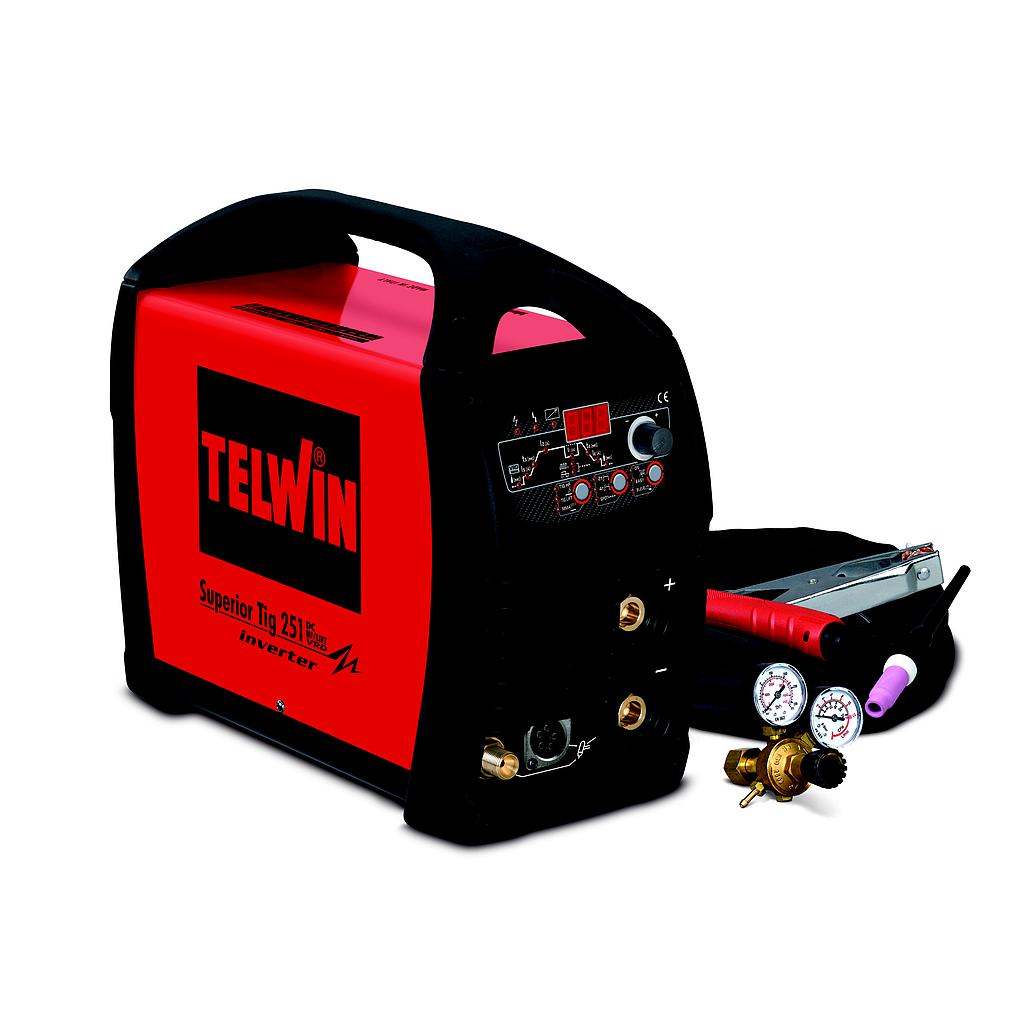

Telwin SUPERIOR TIG 251 DC-HF/LIFT TIG 3PH (1,6 - 5 mm)
Manufacturer: Telwin Model: SUPERIOR TIG 251 DC-HF/LIFT P/N: 816116 Origin: Italy - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
MAX NO LOAD VOLTAGE: 101 V
EFFICIENCY: 85 V
THREE PHASE MAINS VOLTAGE: 400 V
MAX ABSORBED CURRENT: 12 A
POWER FACTOR (cosphi): 0,8
MAINS FREQUENCY: 50 / 60 Hz
ABSORBED CURRENT AT 60% - MAX 6 A
D. USABLE ELECTRODES IN DC: 1,6 - 5 mm
CURRENT RANGE: 10 - 250 A
MAX ABSORBED POWER: 7,5 kW
PROTECTION DEGREE: IP23
MAX CURRENT DC (EN 60974-1): 230 @ 20 % A
ABSORBED POWER AT: 60% 3,3 kW
DIMENSIONS: 43 x 17,5 x 34 cm
DC CURRENT: 115 A
MAINS FUSE: 10 A
WEIGHT: 16,4 kg
Included Accessories
ARGON GAS BOTTLE IT ADAPTOR - 432036
GAS REGULATOR 2 MANOMETERS 12 L\min - 722119
TOLEDO 300 WORK CLAMP - 712231
ST26 TIG TORCH AX50 4M - 742614
CABLE 25 MMQ 3 M ATLAS 50MMQ - 713504
