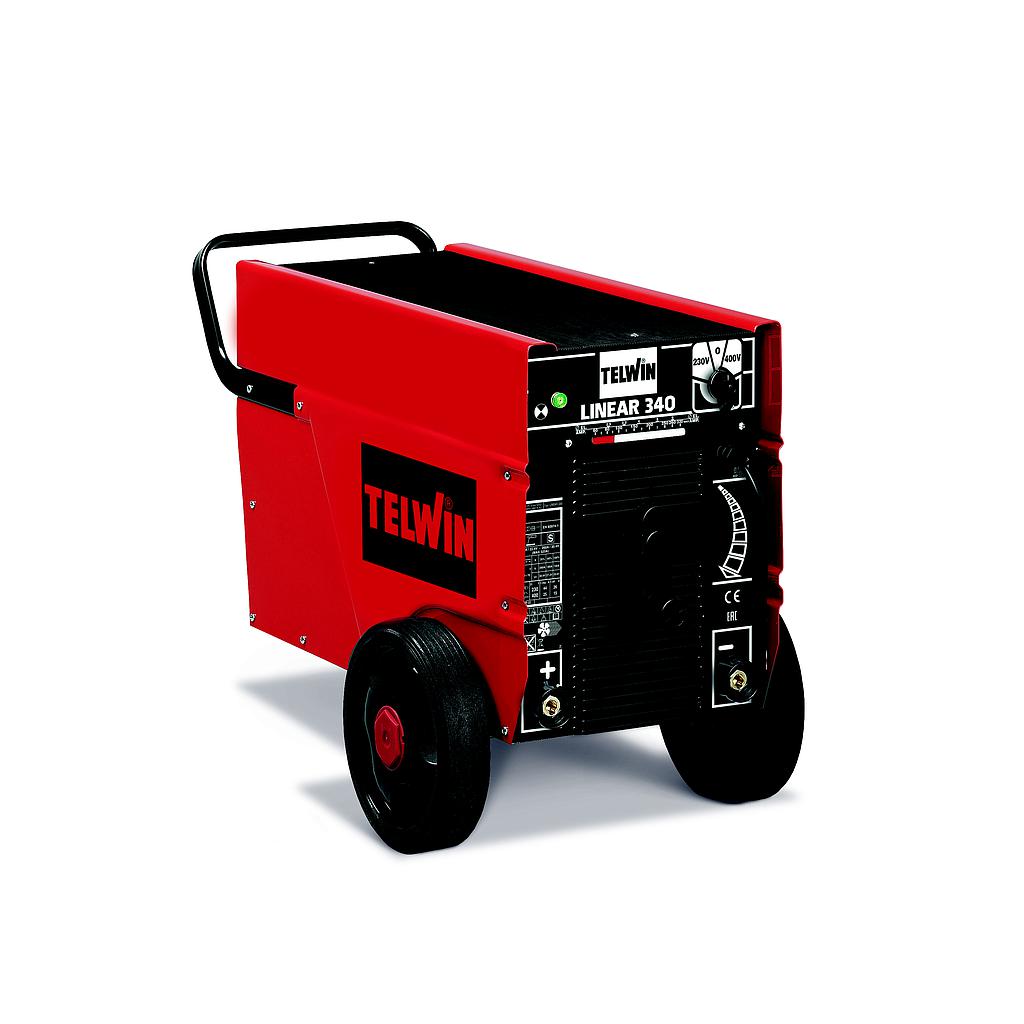

Telwin LINEAR 340 230-400V (2 - 6mm)


DC CURRENT: 180 A

PROTECTION DEGREE: IP22

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX NO LOAD VOLTAGE: 65 V

DIMENSIONS: 89 x 46 x 59 cm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER :11,5 kW

WEIGHT: 80 kg

CURRENT RANGE: 60 - 320 A

ABSORBED POWER AT 60% 7 kW

MAX CURRENT DC (EN 60974-1): 260 @35 %

A POWER FACTOR (cosphi): 0,6

PIECES/PALLET: 6 pz/pallet

MAX CURRENT DC (EN 60974-1): 320 @25 % A

D. USABLE ELECTRODES IN DC: 2 - 6mm

PIECES/PALLET - B: 3 pz/pallet-B
