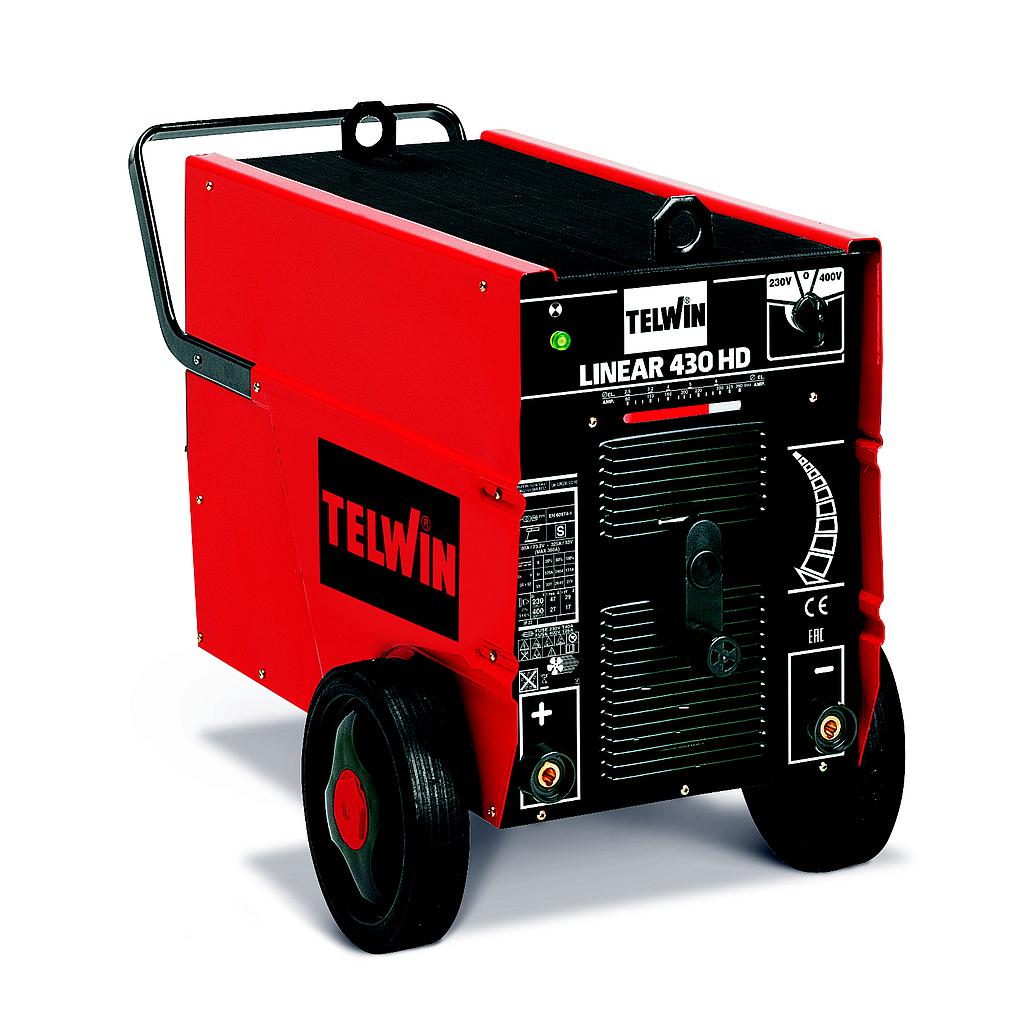

Telwin LINEAR 430HD 230V/400V (2 - 6mm)

MAX NO LOAD VOLTAGE: 62 V

DIMENSIONS: 95 x 49 x 68 cm

THREE PHASE MAINS VOLTAGE :230 /400 V

MAX ABSORBED POWER: 14 kW

WEIGHT: 101 kg

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 8,4 kW

CURRENT RANGE: 80 - 360 A

POWER FACTOR (cosphi): 0,6

PIECES/PALLET: 6 pz/pallet

MAX CURRENT DC (EN 60974-1): 325 @ 35 % A

D. USABLE ELECTRODES IN DC: 2 - 6mm

PIECES/PALLET - B: 3 pz/pallet-B

DC CURRENT: 240 A

PROTECTION DEGREE: IP22
