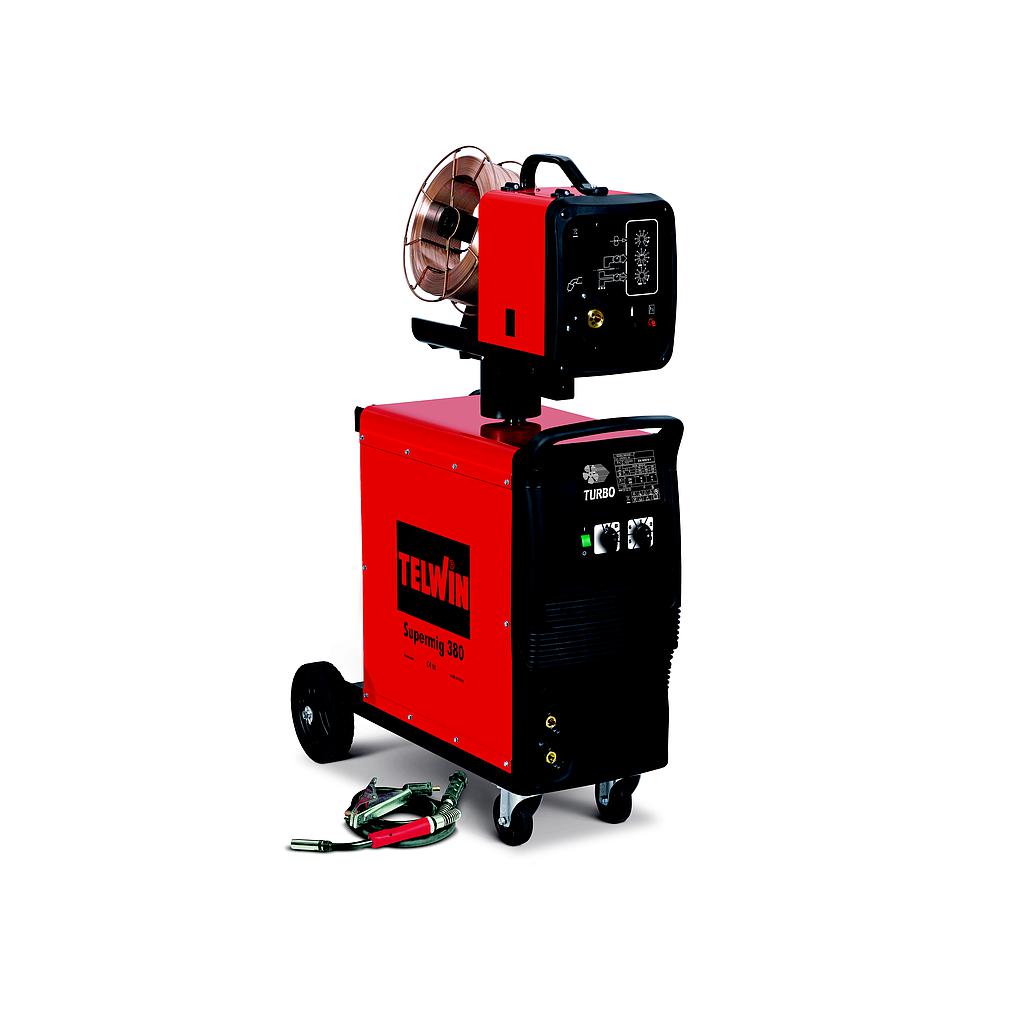

Telwin SUPERMIG 380 230-400V (0.6 -1.6 mm)

MAX ABSORBED POWER: 15 kW

ALUMINIUM WELDING WIRE DIAM:. 0,8- 1,2 mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

ABSORBED POWER AT 60% 8,5 kW

FLUX CORED WELDING WIRE DIAM.: 1 -1,6 mm

MAINS FREQUENCY: 50 / 60 Hz

POWER FACTOR (cosphi): 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

CURRENT RANGE: 40 - 350 A

ADJUSTMENT POSITIONS: 18

PROTECTION DEGREE: IP22

MAX CURRENT DC (EN 60974-1): 350 @35 % A

STEEL WELDING WIRE DIAMETER: 0,6 -1,6 mm

DIMENSIONS: 89 x 45,3 x 128,5 cm

DC CURRENT: 260 A

INOX WELDING WIRE DIAMETER: 0,8 -1,6 mm

WEIGHT: 101 kg

MAX NO LOAD VOLTAGE: 43 V


Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 32 L\min - 722346

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

WORK CLAMP + CABLE 35MMQ 3M AX50 - 804217

MT36 MIG TORCH 3M - 742186
