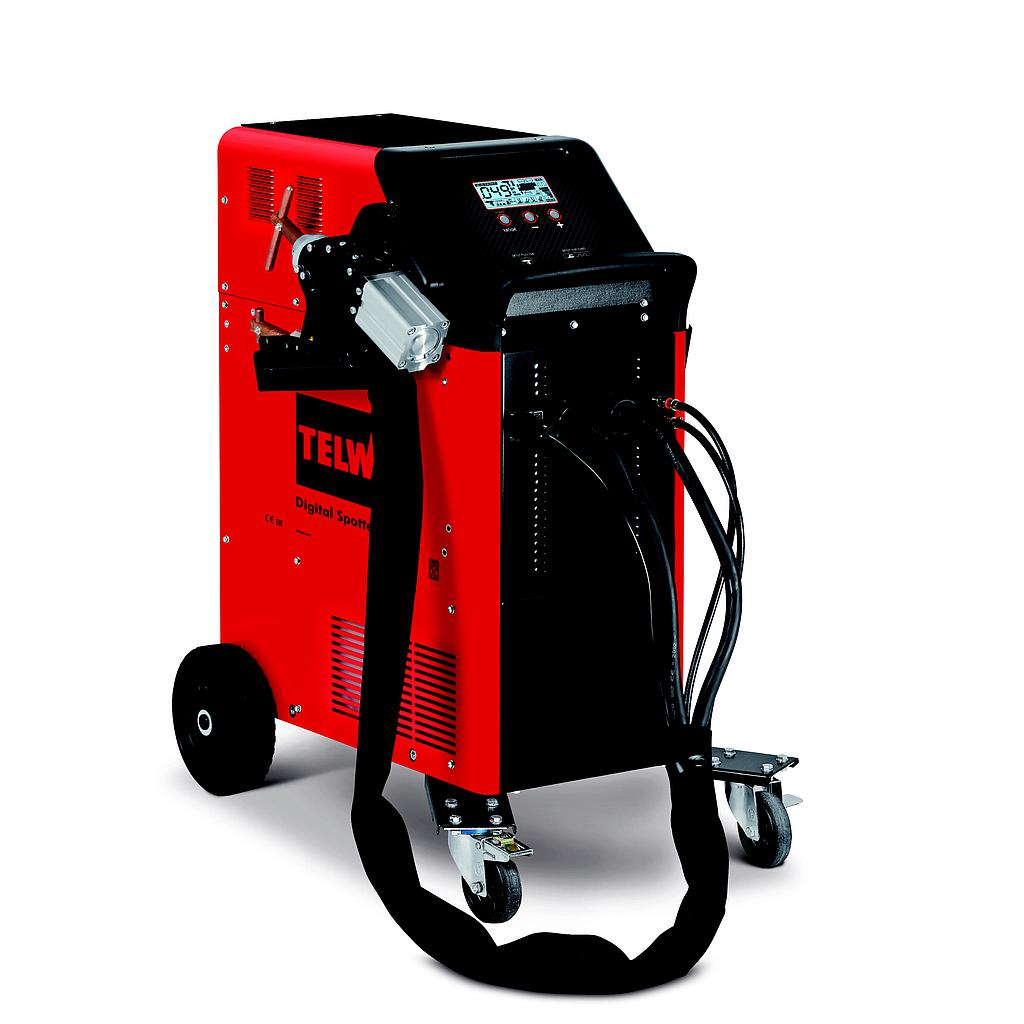

Telwin DIGITAL SPOTTER 9000 AQUA 400V + ACC

MAX ABSORBED POWER: 47 kW

PROTECTION DEGREE: IP22

DOUBLE PHASE MAINS VOLTAGE: 400 V

RATED POWER: X=50% 11 kW

DIMENSIONS: 79 x 45 x 90 cm

MAINS FREQUENCY: 50 / 60 Hz

POWER FACTOR (cosphi): 0,8

WEIGHT: 95 kg

MAX SPOT-WELDING CURRENT: 7000 A

MAX WELD.THICK. ON 2 SHEETS: 3 + 3mm

MAX NO LOAD VOLTAGE: 10 V

DUTY CYCLE: 5 %


Included Accessories

ELECTRODE HOLDER ARM L=120MM - 690005

STRAIGHT ELECTRODE L=50MM D.12MM - 690050

STRAIGHT ELECTRODE L=130MM D.12MM - 690047

PNEUMATIC "X" GUN AQUA + CABLES - 801086

Details

DATASHEET


MANUAL
