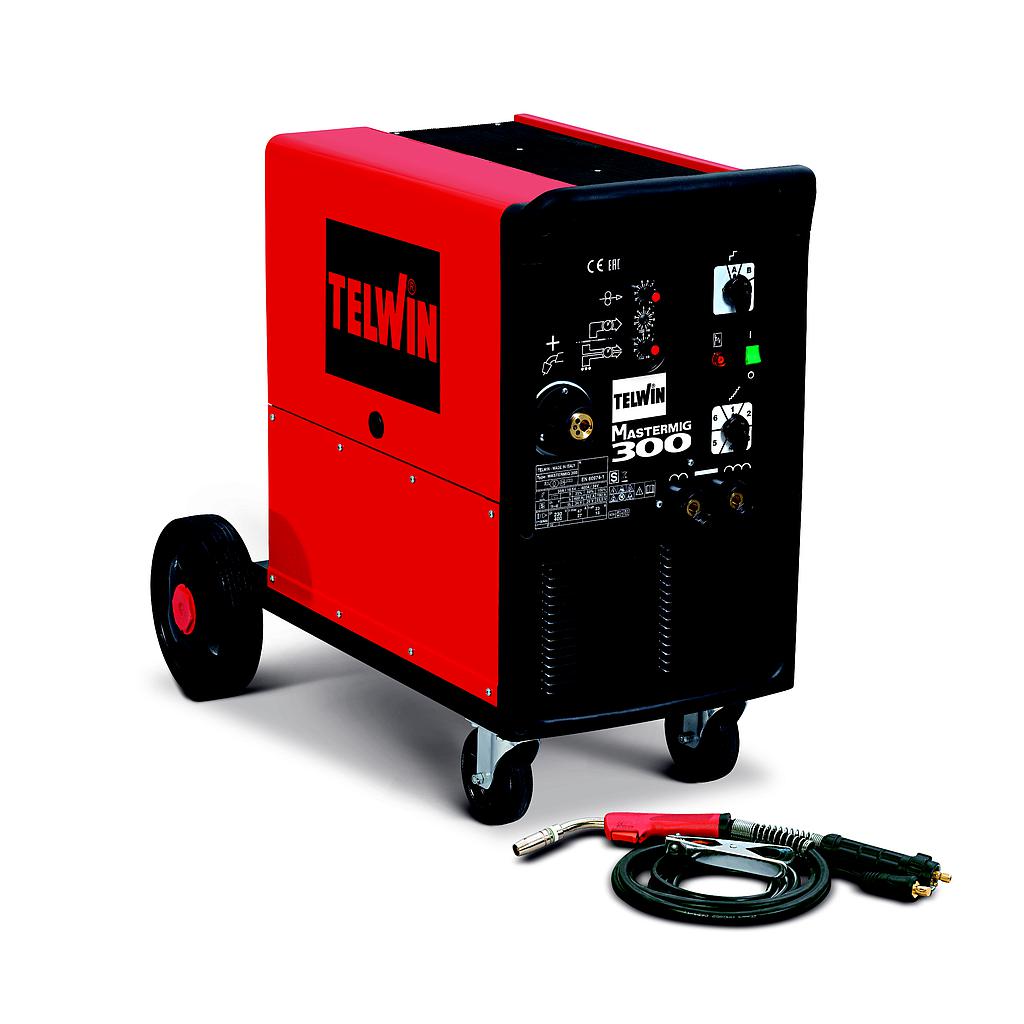

Telwin MASTERMIG 300 230-400V (0.6 -1.2 mm)

MAX NO LOAD VOLTAGE: 41,5 V

STEEL WELDING WIRE DIAMETER :0,6 -1,2 mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 11,5 kW

INOX WELDING WIRE DIAMETER: 0,6 -1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 6 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1,2 mm

CURRENT RANGE: 40 - 300 A

MAINS FUSE: 16 / 10 A

FLUX CORED WELDING WIRE DIAM.: 1 -1,2 mm

MAX CURRENT DC (EN 60974-1): 300 @25 % A

POWER FACTOR (cosphi): 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2mm

DC CURRENT: 200 A

ADJUSTMENT POSITIONS: 12

PROTECTION DEGREE: IP22


Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

TORCH HOOK - 644444

MT25 MIG TORCH 3M - 742183

CABLE 25MMQ 3M- WORK CLAMP -ATLAS 50MMQ - 713192

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576
