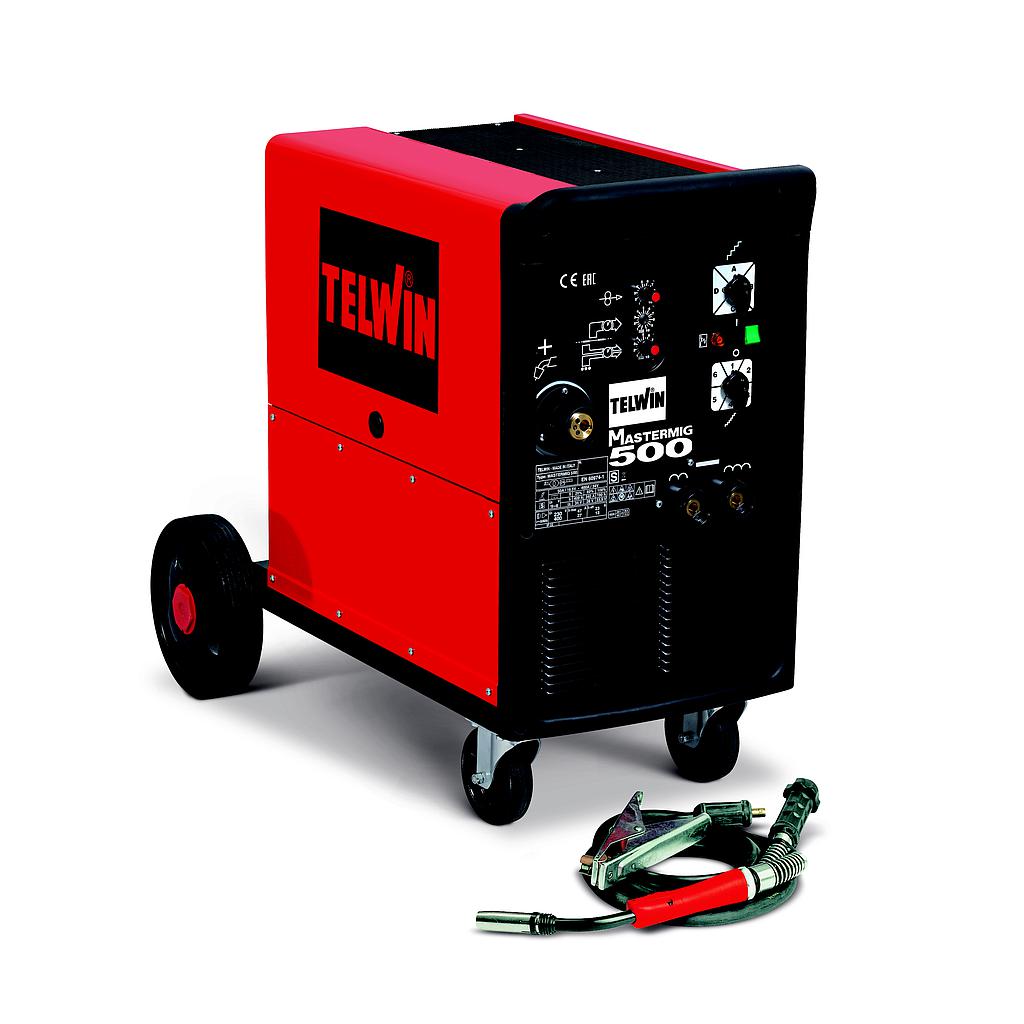

Telwin MASTERMIG 500 230-400V (0.6 -2 mm)

MAX NO LOAD VOLTAGE: 55 V

INOX WELDING WIRE DIAMETER: 0,8 - 2mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 25 kW

ALUMINIUM WELDING WIREDIAM.: 0,8- 1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT: 60% 10 kW

FLUX CORED WELDING WIRE DIAM.: 1 -2mm

CURRENT RANGE: 50 - 500 A

POWER FACTOR (cosphi): 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

MAX CURRENT DC (EN 60974-1): 500 @25 % A

ADJUSTMENT POSITIONS: 24

PROTECTION DEGREE: IP22

DC CURRENT: 280 A

STEEL WELDING WIRE DIAMETER: 0,6 -2 mm

DIMENSIONS: 94,5 x 56,5 x 83 cm


Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT36 MIG TORCH 3M - 742186

TORCH HOOK - 644444

GAS REGULATOR 2 MANOMETERS 32 L\min - 722346

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

WORK CLAMP + CABLE 50MMQ 3M AX50 - 804125
