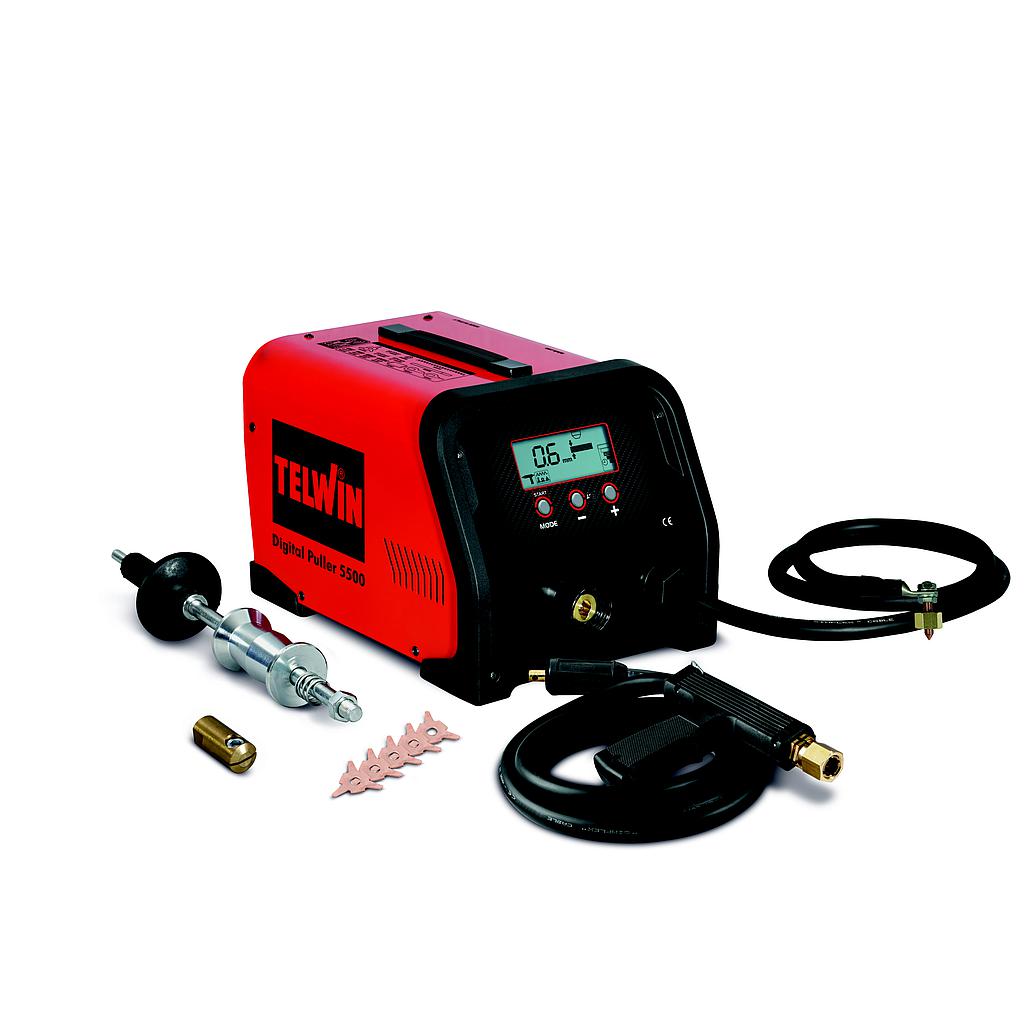

Telwin DIGITAL PULLER 5500 400V

RATED POWER: X=50% 1,8 kW

DIMENSIONS: 39 x 26 x 22,5 cm

DOUBLE PHASE MAINS VOLTAGE :400 V

MAINS FUSE: 10 A

WEIGHT: 21 kg

MAINS FREQUENCY: 50 / 60 Hz

POWER FACTOR (cosphi): 0,8

PEAK SPOT-WELDING CURRENT: 3800 A

MAX SPOT-WELDING CURRENT: 2500 A

PIECES/PALLET: 18 pz/pallet

MAX NO LOAD VOLTAGE: 5,6 V

DUTY CYCLE: 1,5 %

PIECES/PALLET - B: 12 pz/pallet-B

MAX ABSORBED POWER :10,5 kW

PROTECTION DEGREE: IP22


Included Accessories

WASHER 3 PINS - 680001

MANDREL FOR PULLING STARS - 722954

SPOT-WELDING CABLE WITH GUN - 713299

NAILS EXTRACTOR - 742709
