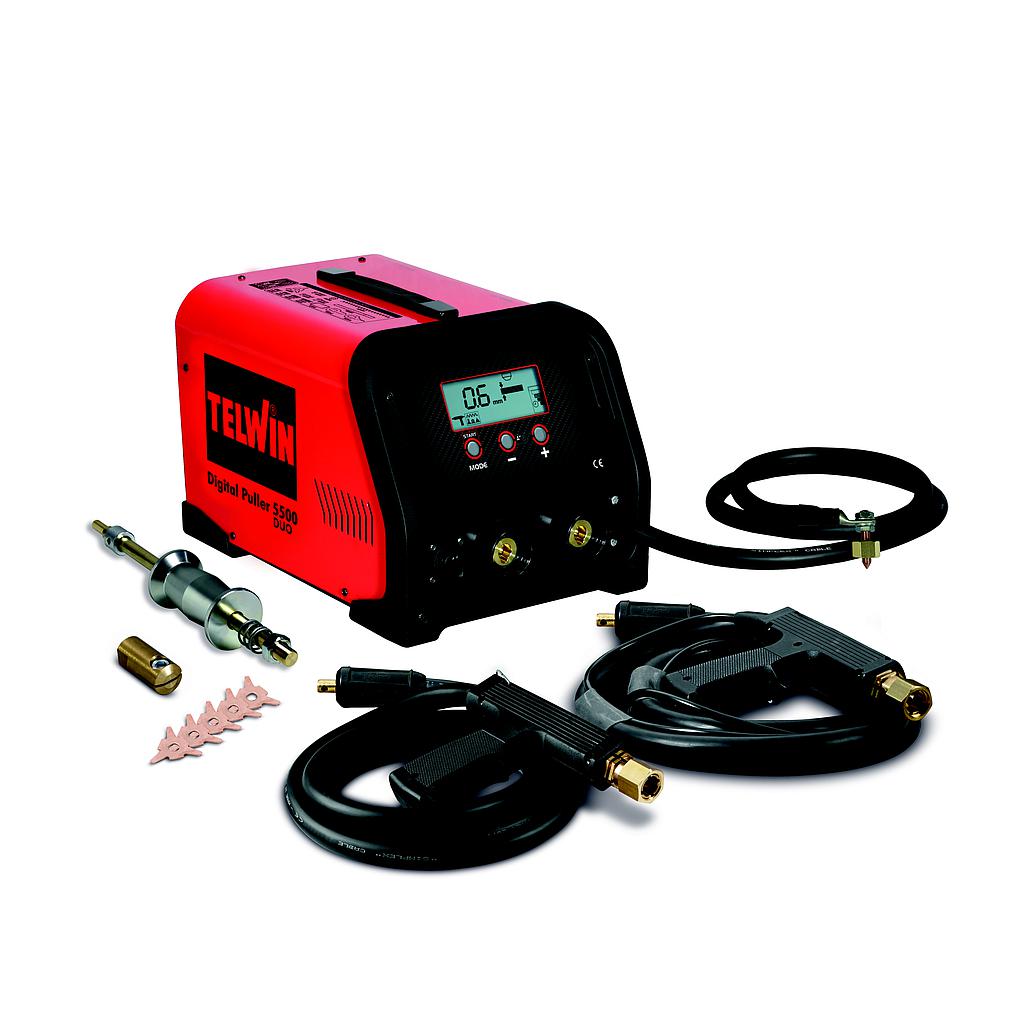

Telwin DIGITAL PULLER 5500 DUO 230V SPOT WELDING
Manufacturer: Telwin Model: DIGITAL PULLER 5500 DUO 230V P/N: 828131 Origin: Italy - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
RATED POWER: X=50% 1,8 kW
DIMENSIONS: 39 x 26 x 22,5 cm
SINGLE PHASE MAINS VOLTAGE: 230 V
MAINS FUSE: 16 A
WEIGHT: 24 kg
MAINS FREQUENCY: 50 / 60 Hz
POWER FACTOR (cosphi): 0,8
PEAK SPOT-WELDING CURRENT: 3800 A
MAX SPOT-WELDING CURRENT: 2500 A
PIECES/PALLET: 18 pz/pallet
MAX NO LOAD VOLTAGE: 5,6 V
DUTY CYCLE: 1,5 %
MAX ABSORBED POWER: 10,5 kW
PROTECTION DEGREE: IP22
Included Accessories
WASHER 3 PINS - 680001
MANDREL FOR PULLING STARS - 722954
SPOT-WELDING CABLE WITH GUN - 713299
NAILS EXTRACTOR - 742709
SPOT-WELDING CABLE WITH GUN - 713303
