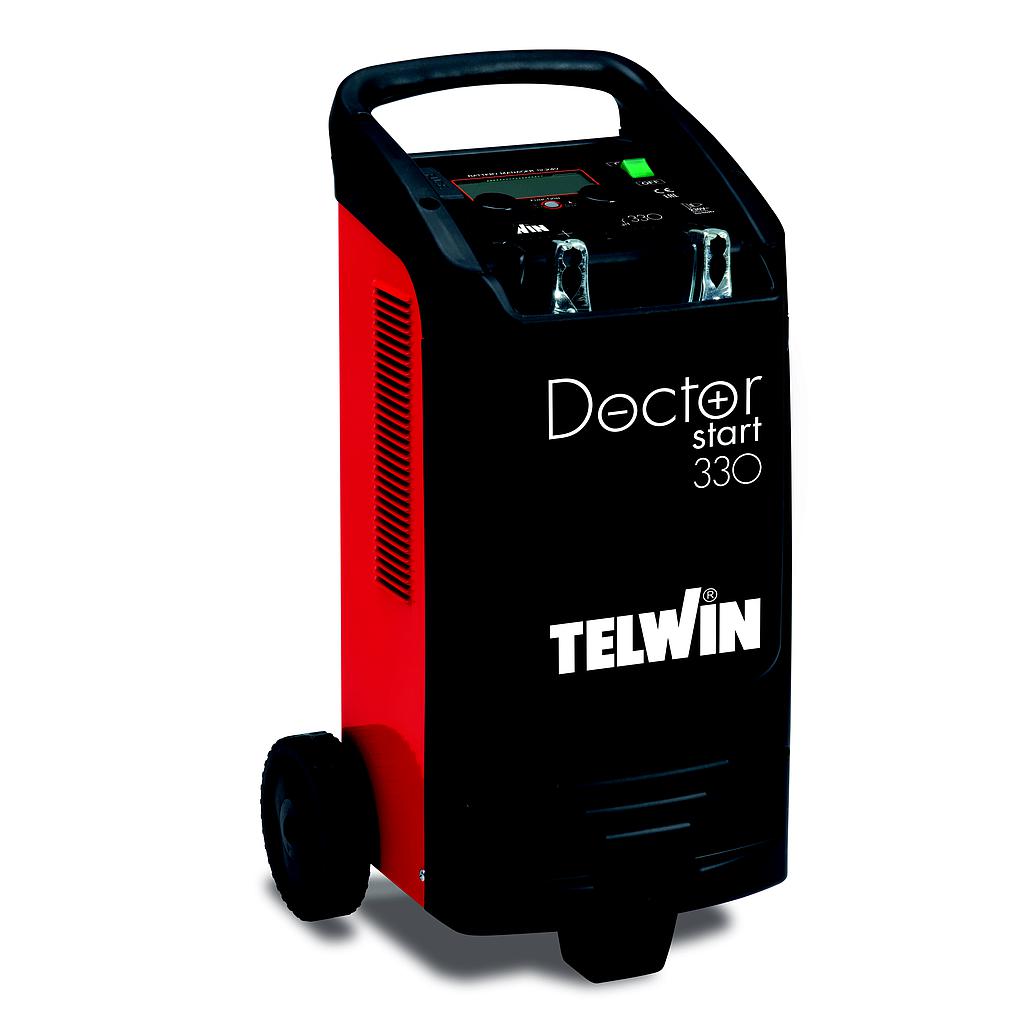

Telwin DOCTOR START 330 230V 12-24V (1 KW)

CHARGING VOLTAGE: 12 / 24 V

MIN. RATED REFERENCE CAPACITY: 10 Ah

SINGLE PHASE MAINS VOLTAGE: 230 V

EFFECTIVE CHARGING CURRENT: 45 A

MAX RATED REFERENCE CAPACITY: 450 A

MAINS FREQUENCY: 50 / 60 Hz

RATED CHARGE CURR.: EN60335-2-29 31 A

DIMENSIONS: 30,5 x 36 x 63 cm

CHARGE POWER: 1 KW

START CURRENT: 1V/C EN60335-2-29 180 A

WEIGHT: 12,5 kg

START POWER: 6,4 KW

MAX STARTING CURRENT: 300 A


Included Accessories

POSITIVE CLAMP - 712747

WORK CLAMP - 712748


Details

DATASHEET


MANUAL
