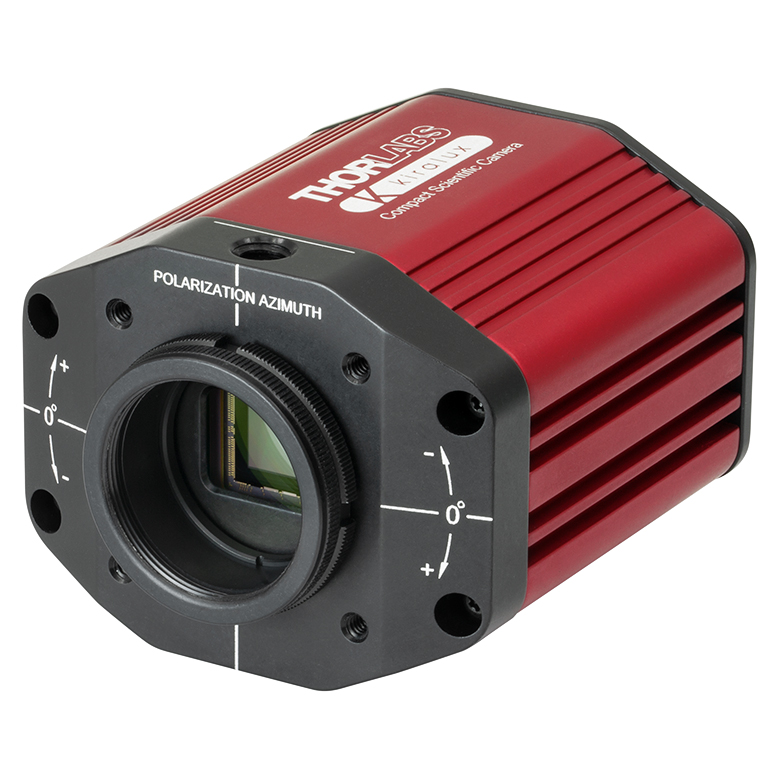

THORLABS CS505MUP1 Polarization Camera with 5.0 MP Monochrome CMOS Sensor
Manufacturer: THORLABS Model: CS505MUP1 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Sensor Type: Monochrome CMOS with Wire Grid Polarizer Array(a)
Effective Number of Pixels (Horizontal x Vertical): 2448 x 2048
Imaging Area (Horizontal x Vertical): 8.4456 mm x 7.0656 mm
Pixel Size: 3.45 µm x 3.45 µm
Optical Format: 2/3" (11 mm Diagonal)
Max Frame Rate: 35 fps (Full Sensor)
ADC(b) Resolution: 12 Bits
Sensor Shutter Type: Global
Peak Quantum Efficiency: 72% from 525 to 580 nm (Typical)
Read Noise: <2.5 e- RMS(c)
Full Well Capacity: ≥10 000 e-
Exposure Time: 0.027 ms to 14235 ms in ~0.013 ms Increments
Vertical and Horizontal Digital Binning: 1 x 1 to 16 x 16
Region of Interest (ROI): 260 x 4 Pixels(d) to 2448 x 2048 Pixels, Rectangular
Dynamic Range: Up to 71 dB
Lens Mount: C-Mount (1.000"-32)
Mounting Features: Two 1/4"-20 Taps for Post Mounting 30 mm Cage Compatible
Removable Optic: Window, Ravg < 0.5% per Surface (400 - 700 nm)
USB Power Consumption: 3.6 W @ 35 fps (Full Sensor ROI)
Ambient Operating Temperature: 10°C to 40°C (Non-Condensing)
Storage Temperature: 0 °C to 55 °C
(a) The wire grid polarizer array is comprised of a repeating pattern of polarizers (0°, 45°, -45°, and 90° transmission axes) and is present on the sensor chip between the microlens array and the photodiodes. Please see the lower right diagram for more information.
(b) ADC = Analog-to-Digital Converter
(c) For Unprocessed Images
(d) When Binning at 1 x 1
