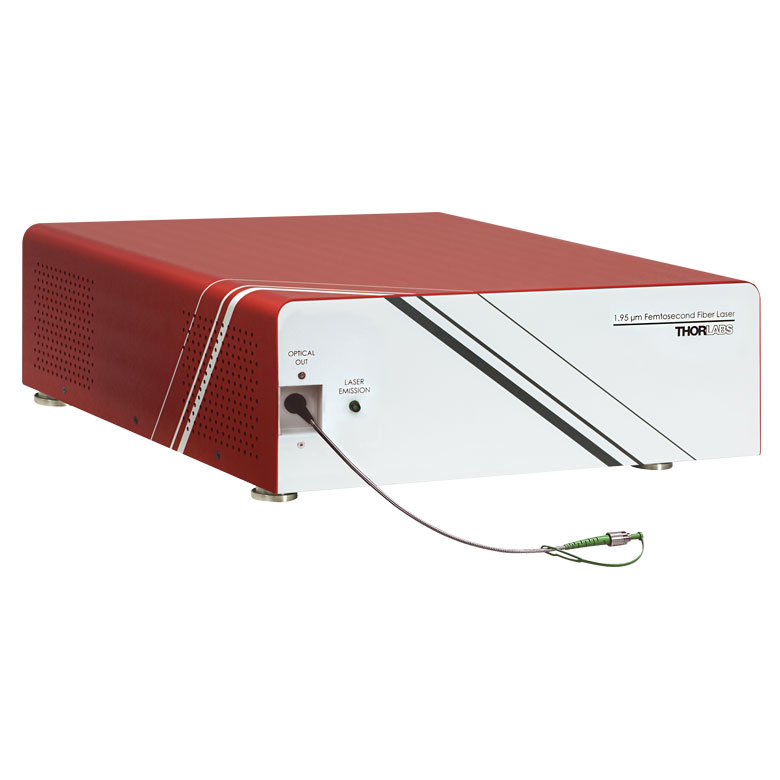

THORLABS FSL1950F Femtosecond Fiber Laser (2 µm)
Manufacturer: THORLABS Model: FSL1950F - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Center Wavelength: 1950 nm ± 30 nm
Pulse Width: <80 fs (FWHM)
Output Power: >500 mW (Average)
Repetition Rate: 50 MHz (Nominal)
Pulse Energy: >10 nJ
Polarization Extinction Ratio(a): >15 dB
External Sync Output: SMA Connector
Fiber Specifications
Connector: 2.0 mm Narrow Key FC/APC
Numerical Aperture (NA): 0.13
Mode Field Diameter: ~12 µm
Length: 12" (30 cm) [Nominal]
Minimum Bend Radius: 6 cm
Jacket: Ø3 mm Stainless Steel
Physical Specifications
Laser Head Dimensions: 17.46" x 15.80" x 5.60" (443.5 mm x 401.3 mm x 142.2 mm)
Controller Dimensions 15.68" x 19.00" x 5.24" (398.3 mm x 482.6 mm x 133.1 mm)
Input Power: 100 - 240 V, 50 - 60 Hz
Input Power Consumption: 700 W (Max)
Environmental Requirements
Room Temperature Range: 17°C to 25°C
Room Temperature Stability: <3°C over 24 Hours
(a) The output polarization is parallel to the fiber alignment key.
