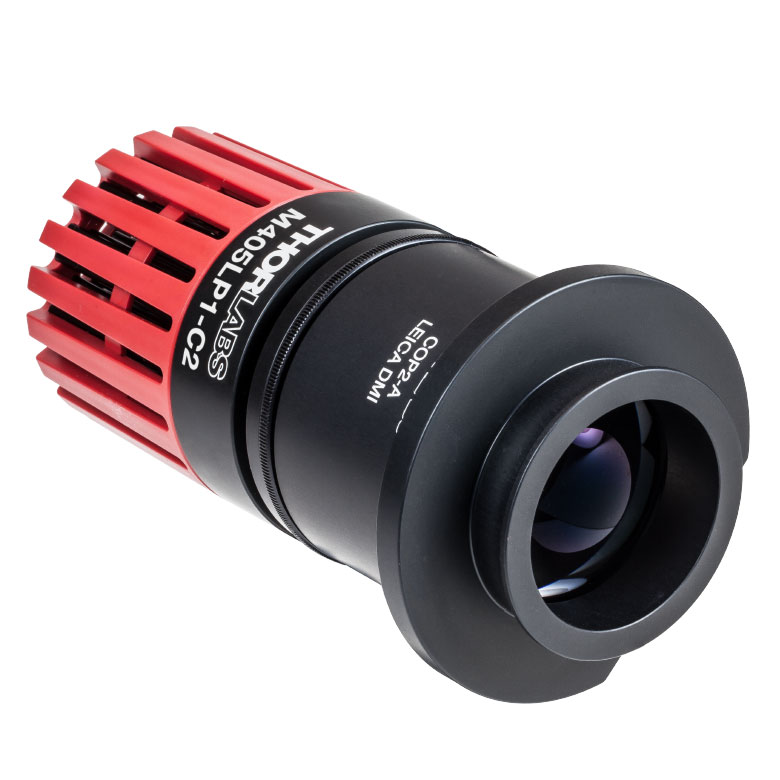

THORLABS M405LP1‐C2 Collimated LED (UV; 405 nm; 450 mW; 37 mm; Leica DMI)

Color: UV

Nominal Wavelength(a): 405 nm

Bandwidth (FWHM): 12 nm

Maximum Current (CW): 1400 mA

Forward Voltage: 3.45 V

Electrical Power (Max): 4830 mW

Emitter Size :1.4 mm x 1.4 mm

Typical Lifetime: >40 000 h

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(b): RG3 – High Risk Group

***a. Value is approximate.

b. According to the standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

Total Beam Power(a): 450 mW

Beam Diameter(a): 37 mm

Compatible Microscopes: Leica DMI

***a. Values are approximate.
