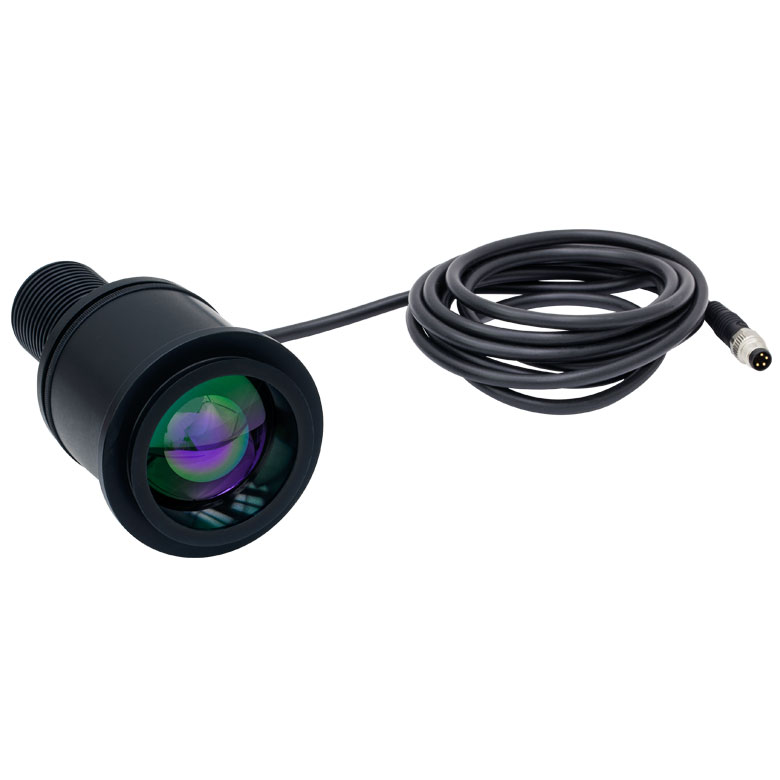

THORLABS M590L4-C4 Collimated LED (Amber; 590 nm; 140 mW; 44 mm; Zeiss Axioskop)

Color : Amber

Nominal Wavelength(a,b): 590 nm

Bandwidth (FWHM): 15 nm

Emitter Size: 1 mm x 1 mm

Maximum Current (CW): 1000 mA

Forward Voltage: 2.5 V

Electrical Power: 2500 mW

Typical Lifetime: >100 000 h

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(c):  RG2 – Moderate Risk Group

***a. Value is approximate.

b. Nominal wavelength is defined as the dominant wavelength perceived by the human eye, which may not correspond to the peak wavelength read by a spectrometer.

c. According to the standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

Total Beam Power(a,b): 140 mW

Beam Diameter(a): 44 mm

Compatible Microscopes: Zeiss Axioskop

***a. Values are approximate.

b. Measured at Maximum Current
