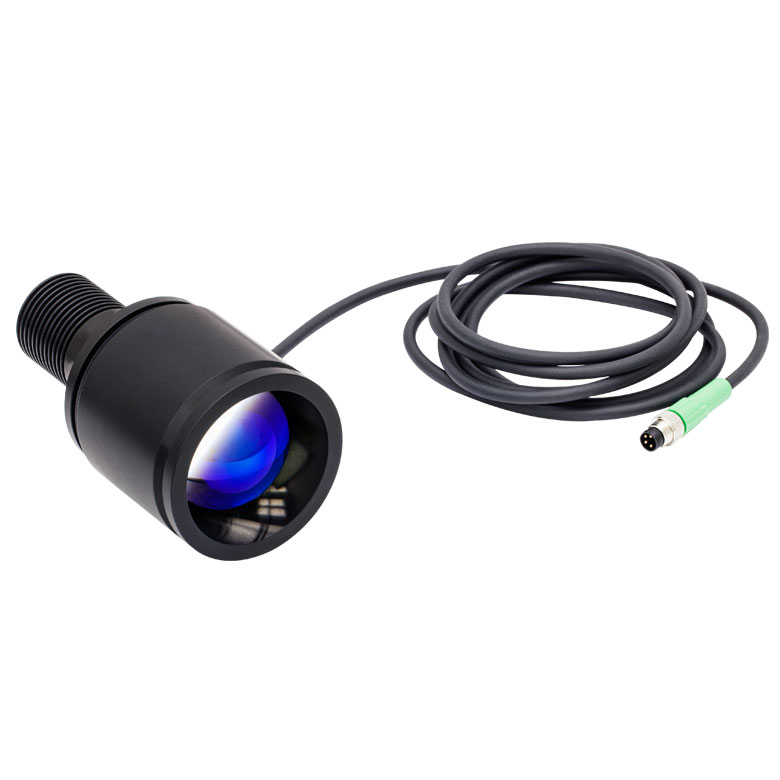

THORLABS M617L4-C1 Collimated LED (Orange; 617 nm; 360 mW; 50 mm; Olympus BX and IX)

Color: Orange

Nominal Wavelength(a,b): 617 nm

Bandwidth (FWHM): 16 nm

Emitter Size: 1 mm x 1 mm

Maximum Current (CW): 1000 mA

Forward Voltage: 2.6 V

Electrical Power: 2600 mW

Typical Lifetime: >100 000 h

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(c): RG2 – Moderate Risk Group

***a. Value is approximate.

b. Nominal wavelength is defined as the dominant wavelength perceived by the human eye, which may not correspond to the peak wavelength read by a spectrometer.

c. According to the standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

Total Beam Power(a,b): 360 mW

Beam Diameter(a): 50 mm

Compatible Microscopes: Olympus BX and IX

***a. Values are approximate.

b. Measured at Maximum Current.
