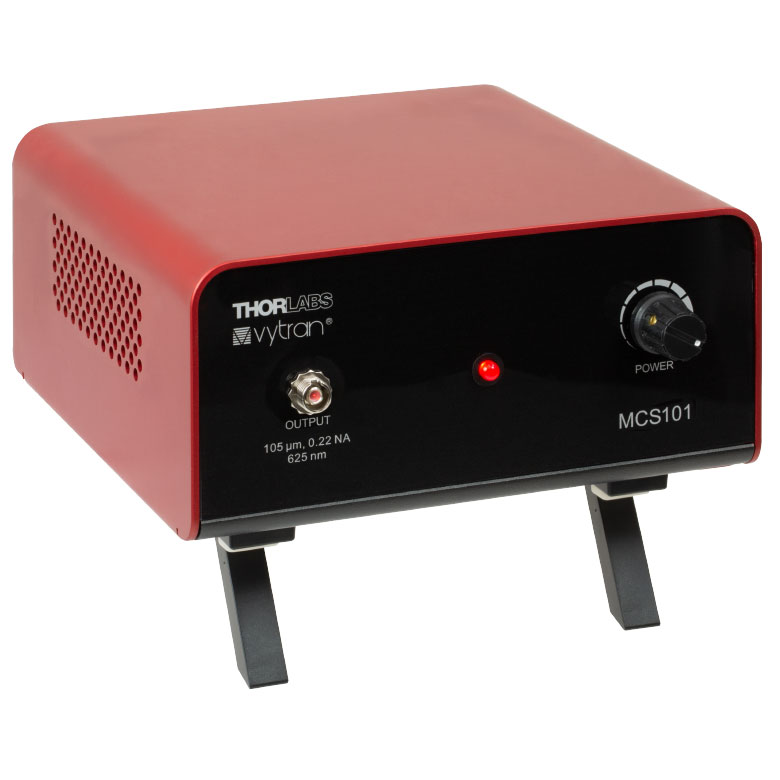

THORLABS MCS101 Light Sources (Mode-Conditioned, 625 nm)

LED Wavelength: 625 nm

Bandwidth (FWHM): 15 nm

Maximum Intensity at the Exit Port: >0.1 mW

95% Intensity Clip Angular Span: ±7.35° (Minimum)

95%/50% Intensity Clip Bandwidth Ratio: >0.65

Standard Deviation within 95% Intensity Bandwidth Region: <1.5%

Exit Port Bulkhead: FC/PC, 2.2 mm Wide Key

NA: 0.22

Core Diameter: 105 µm

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(a): RG0

Compatible Patch Cables(b): M43L01, M18L01

(a) According to the Standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

(b) Other patch cables may be used that have identical core size, NA, and connector configurations, but performance may vary.
