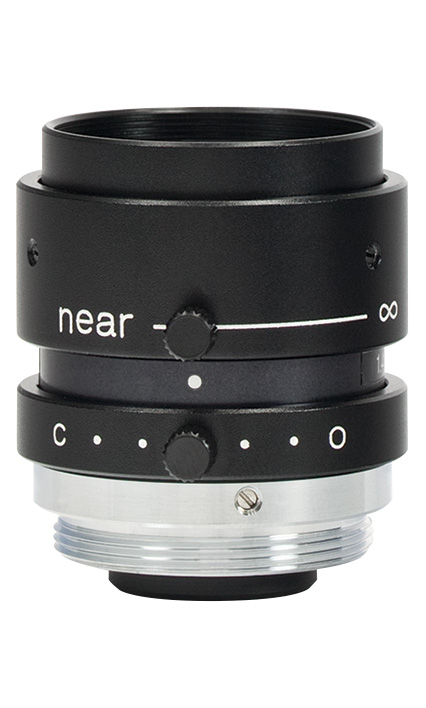

THORLABS MVL12WA Camera Lenses for Machine Vision Fixed Focal Length (12 mm)

Focal Length: 12 mm

Aperture (Max): f/2.8

Min Object Distance: 300 mm (11.8")

Design Format(b): 1/2"

Field of View (4/3)(c): N/A

Field of View (1")(c): N/A

Field of View (1/1.2")(d): N/A

Field of View (2/3")(c): N/A

Field of View (1/1.8")(c): N/A

Field of View (1/2")(c): 38.5°

Field of View (1/3")(c): 28.1°

Filter Threading: M25.5 x 0.5

Camera Threading: C-Mount (1.00"-32)

(a) The MVL12M43 is compatible with our Scientific-Grade Cameras, but when used with the hermetically-sealed camera package the IR filter included with the camera may need to be removed. For questions about compatibility and recommended usage please contact Tech Support.

(b) These lenses can be used with smaller format camera sensors; however, this will result in a reduced field of view. Please see the Camera Lens Tutorial tab for details.

(c) The field of view is specified for the diagonal.

(d) These field of view specifications are estimated.
