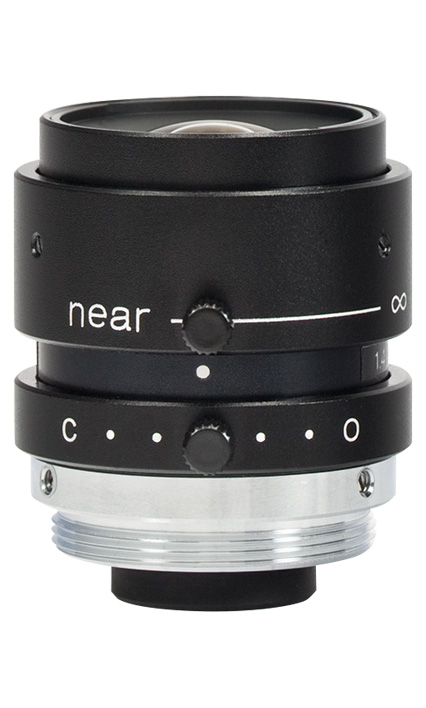

THORLABS MVL5WA Camera Lenses for Machine Vision Fixed Focal Length (4.5 mm)
Focal Length: 4.5 mm
Aperture (Max): f/1.4
Min Object Distance: 200 mm (7.9")
Design Format(a): 1/2"
10 MP Compatible (Click for MTF Plot): No
Field of View (2/3")(c): N/A
Field of View (1/1.8")(c): N/A
Field of View (1/2")(c): 98.2°
Field of View (1/3")(c): 67.4°
Filter Threading: -
Camera Threading: C-Mount (1.00"-32)
(a) These lenses can be used with smaller format camera sensors; however, this will result in a reduced field of view. Please see the Camera Lens Tutorial tab for details.
(b) Raw Data for this plot is available in the 10 MP Lens Data tab above.
(c) The field of view is specified for the diagonal.
