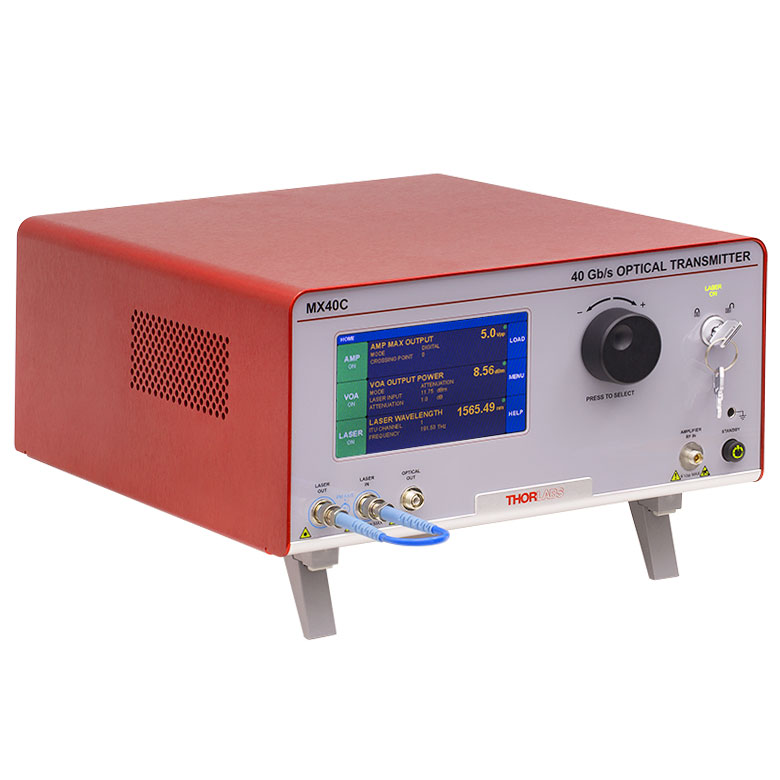

THORLABS MX40C-1310 High-Speed Optical Transmitters with Phase Modulators (1310 nm-Typical)
Manufacturer: THORLABS Model: MX40C-1310 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Amplifier Type: Digital (Limiting)
Bit Rate (Maximum): 40 Gb/s
Internal Laser:
- Laser Type: 1310 nm Fixed-Wavelength
- Wavelength Range(a): 1310 nm (Typical)
- Output Power (Typ.): 13.5 dBm
External Laser(b):
- Wavelength Range(c): 1250 nm - 1610 nm
- Optical Input Power: 20 dBm (Max); 22 dBm (Absolute Max)
Power Calibration Points: 1310 nm, 1550 nm, and 1590 nm
Optical Extinction Ratio: 13 dB (Typical Maximum)
Electrical Return Loss (d): -10 dB (Any RF Port, Typical)
Modulator Type: Phase
Optical Insertion Loss (Typical)(e): 5.0 dB (1550 nm). 7.0 dB (1310 nm)
Internal Optical Fiber: PM Ports: PM PANDA Fiber. SM Port: SMF-28-Compatible Fiber
Fiber Connectors: FC/PC, 2.0 mm Narrow Key
(a) C-band and L-band lasers are tunable in 50 GHz steps. An 850 nm fixed-wavelength laser can be substituted upon request: contact Thorlabs’ Tech Support.
(b) User-Supplied
(c) Using the modulator at another wavelength (e.g. visible light) may cause an increase in insertion loss and will void the warranty.
(d) To the -3 dB Bandwidth
(e) Laser IN to Optical OUT.
