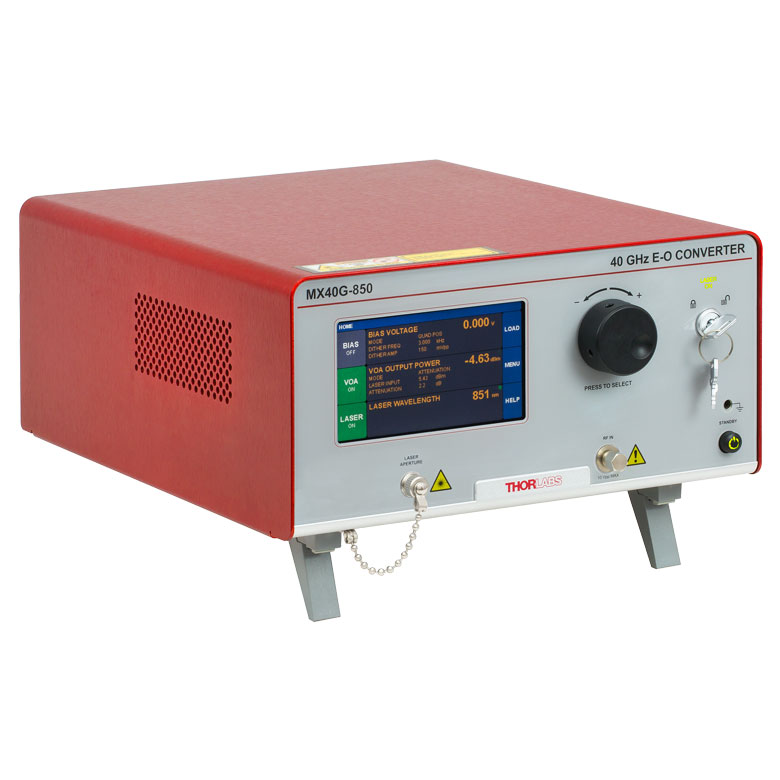

THORLABS MX40G-850 Calibrated Electrical-to-Optical Converters (40 GHz, 852 nm (Typ.))

Key System Specifications(a):

Frequency Response(b)(Click for Plot): DC - 40 GHz

Internal Laser Type: Fixed Wavelength

Internal Laser Wavelength: 852 nm (Typ.)

External Laser Support: None

Input RF Connector Type: 2.92 mm Connector(c)

(a) For complete specifications, see the manual.

(b) Measured frequency response provided in *.s2p file on a USB drive with each unit.

(c) The 2.92 mm connector can mate directly to an SMA, 3.5 mm, or K connector.
