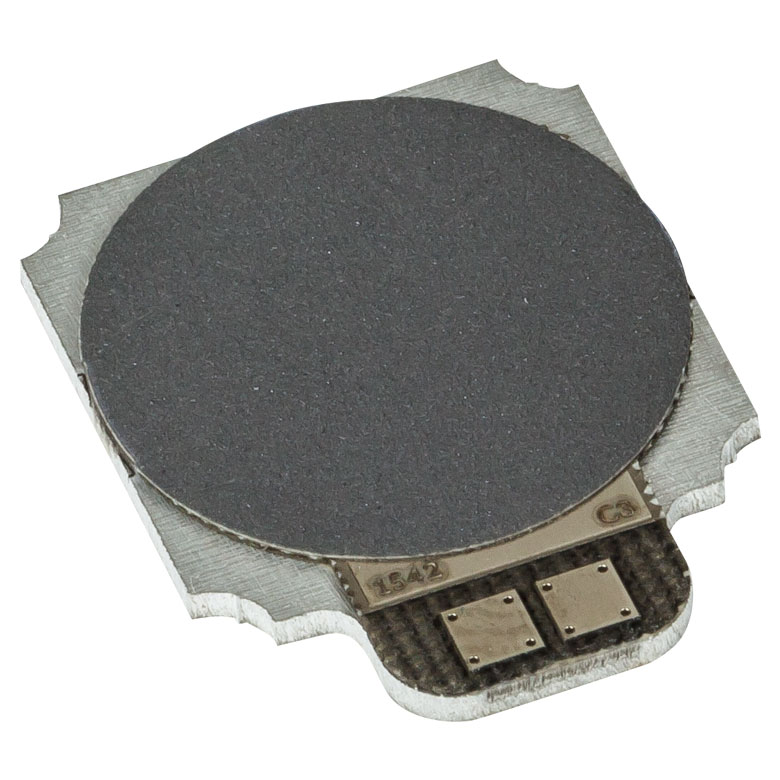

THORLABS TD15A Mounted Thermal Detectors (1 mW - 50 W)

Wavelength Range: 190 nm - 20 µm

Optical Power Working Range(a): 1 mW - 50 W

Active Sensor Area: Ø15.0 mm (Ø0.59")

Item # of Mounted Sensor: N/A

Max Average Power Density(b): 1.5 kW/cm²

Max Pulse Energy Density: 0.3 J/cm2 (1 ns Pulse), 5 J/cm2 (1 ms Pulse)

Detector Type: Thermopile

Typical Responsivity:  1 mV/W

Linearity with Optical Power: ±0.2%

Rise Time(c): 0.6 s

Active Area Uniformity: ±1% (>1 mm Beam Diameter)

Temperature Sensor: N/A

Detector Dimensions: 15.0 mm x 19.0 mm x 1.5 mm (0.59" x 0.75" x 0.06")

Substrate: Aluminum Plate

Mounting(a): Four 1.6 mm (0.06") Radius. Quarter-Hole Mounting Points

Electrical Connection: Wire

(a) Mounting on an appropriate heat sink is required. For mounting instructions and other information, see the Handling Instructions manual.

(b) Damage Threshold

(c) Typical Natural Response Time (0 - 95%)
