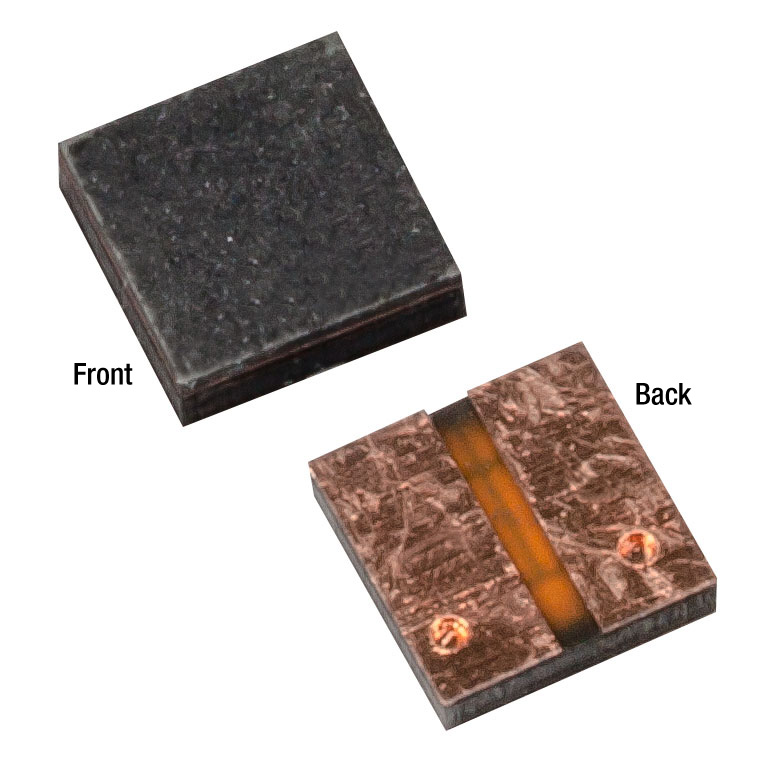

THORLABS TD2X Unmounted Thermal Detectors (100 µW - 500 mW)

Wavelength Range: 190 nm - 20 µm

Optical Power Working Range(a): 100 µW - 500 mW

Active Sensor Area: 2.0 mm x 2.0 mm (0.08" x 0.08")

Max Average Power Density(b): 1.5 kW/cm²

Max Pulse Energy Density: 0.3 J/cm2 (1 ns Pulse), 5 J/cm2 (1 ms Pulse)

Detector Type: Thermopile

Typical Responsivity: >100 mV/W

Linearity with Optical Power: ±0.2%

Rise Time(c): 1.5 s

Active Area Uniformity: ±1% (>1 mm Beam Diameter)

Detector Dimensions: 2.0 mm x 2.0 mm x 0.5 mm (0.08" x 0.08" x 0.02")

Mounting(a): SMD Solder Pads

Electrical Connection: Copper Solder Pads on Back Side

(a) Mounting on an appropriate heat sink is required. For mounting instructions and other information, see the Handling Instructions manual.

(b) Damage Threshold

(c) Typical Natural Response Time (0 - 95%)
