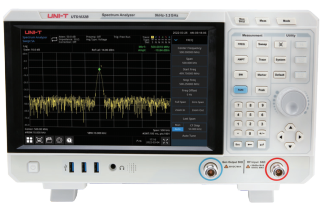

UNI-T UTS1015B Spectrum Analyzer (1.5GHz, 1Hz~1 MHz, -161 dBm/Hz)

Frequency range: 9kHz-1.5GHz

Frequency resolution: 1Hz

Sweep width range: 100Hz~1.5GHz

Sweep accuracy: ± Sweep width /(Scanning points -1)

Cursor frequency uncertainty: ± [Cursor frequency reading × reference frequency accuracy + 1% × sweep width + 10% × resolution bandwidth + cursor frequency resolution]

Cursor type: General, difference, fixed, relative to, cursor table

Cursor function: Noise、 N dB bandwidth, Frequency counter

RBW (-3 dB): 1 Hz~1 MHz, 1-3-10 stepping

Shape factor of resolution filter:<4.8:1(60dB:3dB), Gaussian like type

Video bandwidth (-3 dB): 1 Hz ~3 MHz, 1-3-10 stepping

Bandwidth uncertainty: < 5%

Amplitude measurement range (preamplifier off): DANL ~ +10 dBm, 100 kHz~1 MHz,

                                                DANL ~ +20 dBm, 1 MHz~1.5 GHz.

Reference level: -100 dBm ~ +30 dBm, Step 1 dB

Maximum input DC voltage: +/- 50 V DC

Maximum continuous wave RF power: 33 dBm, 3 minute, Input attenuation >20 dB

Display logarithmic level coordinates: 1 dB~200 dB

Display linear level coordinates: 0 ~Reference level

Level coordinate unit: dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W

Scanning points: 10001

Number of traces: 4

Detection mode: Positive peak, negative peak, sample, Normal, average (voltage / RMS / video), quasi peak (EMI measurement option)

Trace function: Clear write, max hold, min hold, view, close, average

Frequency response: Preamplifier off: <0.7 dB(fc ≥ 100 kHz, attenuator is 10 dB, relative to 50 MHz, 20℃~30℃)

                    Preamplifier on: <1.0 dB(fc ≥ 100 kHz, attenuator is 10 dB, relative to 50 MHz, 20℃~30℃)

RBW switching error: < 0.1 dB relative to RBW at 1 kHz

Input attenuation error: <0.3 dB(20℃ ~30℃, fc=50 MHz, attenuation relative to 10 dB)

Full amplitude accuracy: ±1.2 dB(20℃ ~30℃, Fc>100 kHz, Input signal level -50 dBm~0 dBm, RBW=1 kHz, VBW=1 kHz, Peak detection, Input attenuation 20dB, Preamplifier off, 95% Confidence)

Voltage input standing wave ratio: Input attenuation 10 dB

                                                      1 MHz~1.5 GHz <1.5, Nominal value

Scanning time: 1 ms ~ 1500 s

Scanning mode: Sweep frequency, RBW=30 kHz~1 MHz; FFT,RBW=1 Hz~10 kHz

Scan rule: Continuous, single

Trigger source: Free, video, external

External trigger settings: level(5V TTL), Rising edge / falling edge

Tracking source:

- Frequency range: 100 kHz~1.5GHz

- RBW: 100 Hz~1 MHz, Only scan mode is supported

- Output level range: -30 dBm~0 dBm

- Output level resolution: 1 dB

- Flatness output: +/-3 dB

- Maximum reverse input level: Average power: 30 dBm, DC : ±50 V DC

Interface

Trace source output,10MHz reference input, 10MHz reference output, Ext Trigger, HDMI, USB host, USB device, LAN, 3.5mm

Power: 100~240V AC, 50Hz/60Hz

Display: 10.1 inch TFT LCD (1280x800) touch

Product size(W×H×D): 368 mm×218 mm×120 mm

Product net weight: 4.5kg
