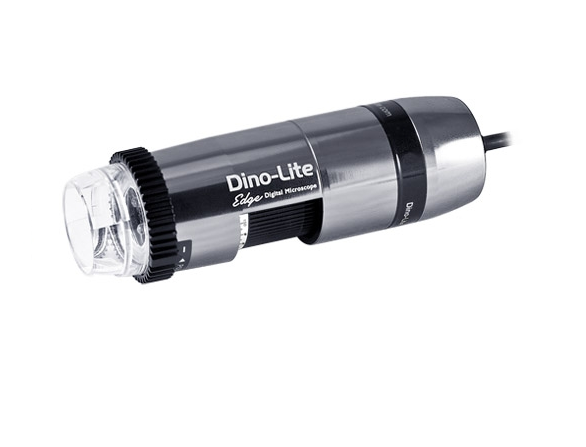

Dino-Lite AM7515MZTL Dino-Lite Edge Handheld Digital Microscope (USB) (5M pixels; 10x~140x)

Interface: USB 2.0

Product Resolution: 5M pixels (2592x1944)

Magnification: 10x~140x

Frame Rate:

10fps in 5MP/3MP/2MP, MJPEG

25fps in 1.3MP, MJPEG

30fps in VGA, MJPEG

Lighting: 8 white LEDs

Polarizer: Yes

Microtouch: Yes

Operating System Supported: Windows 10, 8, 7, Vista, XP; Mac OS 10.9 or later

System Requirements:

‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)

‧ 20GB available HD space

‧ 2GB available RAM or more

‧ 512MB video card or more

‧ CD-ROM drive for installation

‧ USB 2.0

Calibration Function: Yes

Measurement Function: Yes

Unit Dimension: 10.5cm (H) x 3.2cm (D)

Unit Weight: 135g

Accessory - N3C-R (Ring Light Cap):

Model: N3C-R Ring Light Cap

Compatible Dino-Lite Models: Dino-Lite Edge LWD models (TL, ZTL)

Unit Dimension: 15.5 mm (H) x 65 mm (D)

Materials: Polycarbonate with sputtered aluminum coated

Unit Weight: approx. 8 g
