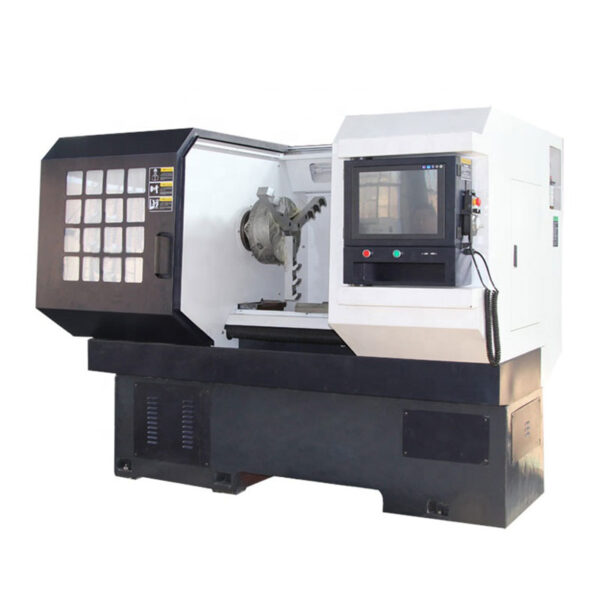

WMT CNC AWR26 Wheel CNC Lathe (660mm)

Max.Swing diameter over bed: 660(26” )mm

Max.swing diameter over gap: 760mm

Max. Size of alloy wheel: 660(26“)mm

Max.turning length: 650mm

Width of the rail: 360mm

Axis travel: X: 350mm, Z: 500mm

Spindle speed: 40-1800r/min

Spindle taper: 6#MT

Spindle hole: 52mm

Tool shank size: 25×25mm

Rapid traverse of X axis: 3000mm/min

Rapid traverse of Z axis: 6000mm/min

Main motor power: 5.5kW

X and Z axis motor: Servo motor

Overall dimension  (L×W×H ): 2100x1700x1950mm

Weight: 2300kg
