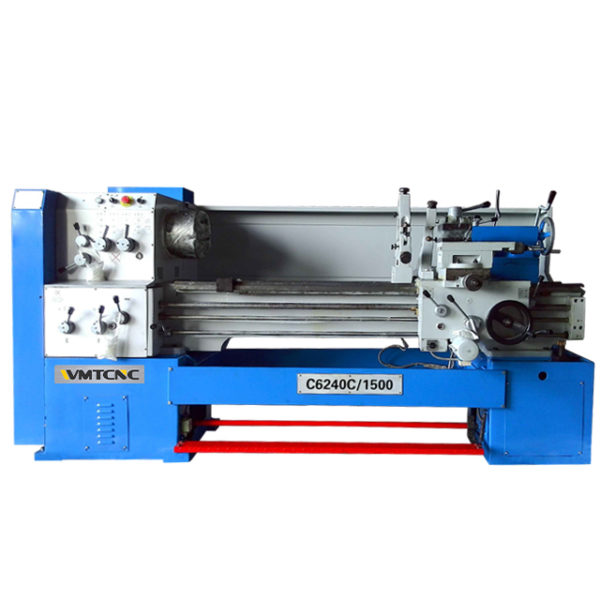

WMT CNC C6240C Engine Lathe
Manufacturer: WMT CNC Model: C6240C Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max.swing over bed: 400mm
Max.swing over cross slide: 230mm
Max.swing over gap: 560mm
Effective length of gap: CC: 160mm
Center Distance: 750/1000/1500/2000/3000
Bed Width: 360mm
Spindle hole: 52mm
Spindle nose: ISO-C6
Spindle taper: MT6
Spindle speed(Number): (9steps)40-1400rpm
Metric threads range: 19kinds 0.5-14mm
Inch threads range: 27kinds 2-40inch
Max.travel of cross slide: 200mm
Max.size of tool shank: 20×20mm
Dia.of tail stock sleeve: 65mm
Taper of tail stock sleeve: MT4
Max.travel of tail stock: 130mm
Main drive motor: 4kw or 5.5kw
Coolant pump motor: 125W
Packing size: 2250/2450/2880x110x1650mm
