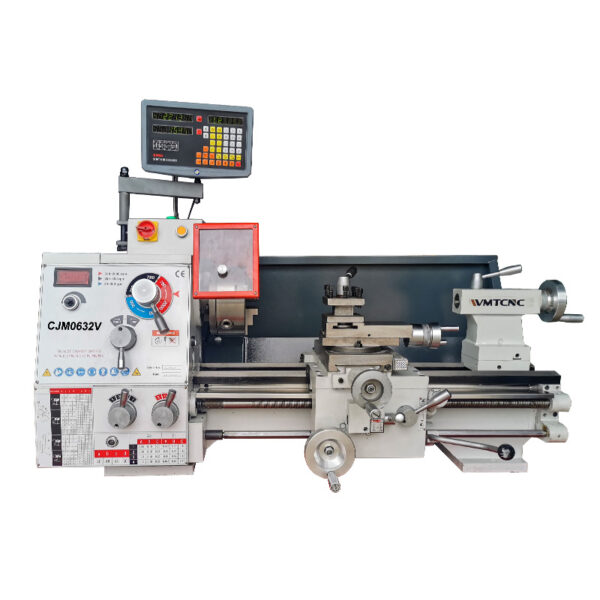

WMT CNC CJM0632V Bench Lathe (750W)
Manufacturer: WMT CNC Model: CJM0632V Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max Swing diameter on the bed: 320 mm
Distance between center: 500/750mm
Max swing over cross slide: 180 mm
Spindle bore: 38 mm
Spindle taper: MT.5#
Max longitudinal travel over toolpost: 160 mm
Max cross slide travel over toolpost: 75 mm
Metric thread kinds: 18
Metric thread range: 0.20~3.5 mm
Inch thread kinds: 34
Inch thread range: 41/2～48 1/n″π
Longitudinal feed range: 0.08~0.56 mm/r
Cross-feed range: 0.04~0.28 mm/r
Max tailstock quill travel: 60 mm
Tailstock quill taper: MT.3#
Spindle speed kinds: 3 Kinds
Spidnle speed range: 30~2000 r/mim
Main motor: 750W 380V 50HZ (or 220V 50HZ)
Net weight(without stand): 30kg
Gross weight(without stand): 35kg
