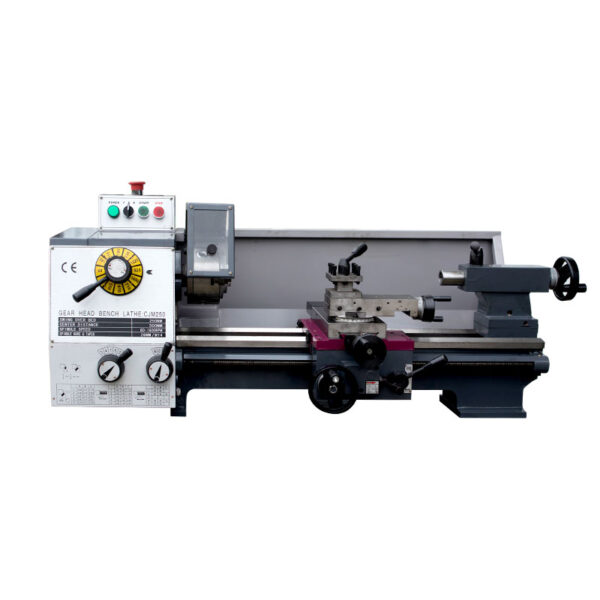

WMT CNC CJM250 Bench Lathe (750W)
Manufacturer: WMT CNC Model: CJM250 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. swing over the bed: 250mm
Max. length of work piece: 500mm
Max. swing over cross slide: 150mm
Spindle bore: 26mm
Spindle taper: MT4
Max. cross slide travel: 130mm
Max. longitudinal stroke over tool post: 60mm
Metric thread kinds: 9
Metric pitches: 0.25-2.5mm
Inch threads kinds: 15
Inch pitches: 12-96TPI
Longitudinal-feed range: 0.025-0.250mm/r
Cross-feedrange: 0.0125-0.125mm/r
Max. travel of tailstock taper: 60mm
Tailstock sleeve taper: MT3
Spindle speeds range: 12 steps: 80-2000r/min
Motor: 750W
Net weight (without base): 180/200kg
Packing size (without stands): (L×W×H) 1160x640x580mm
