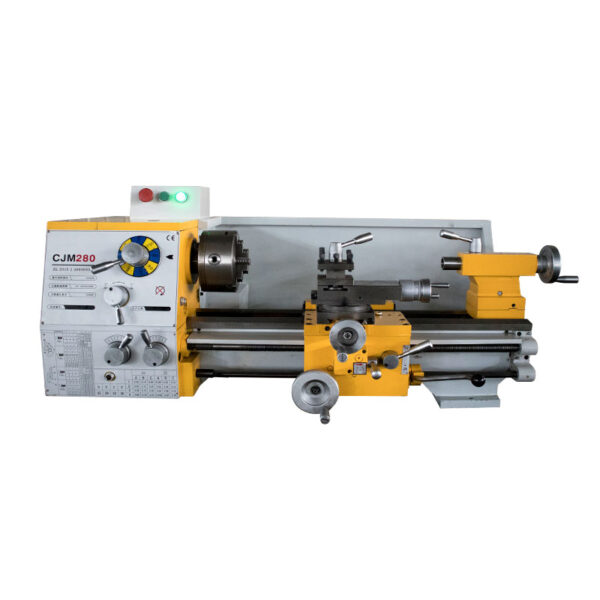

WMT CNC CJM280 Bench Lathe (750W)
Manufacturer: WMT CNC Model: CJM280 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. swing over the bed: 280mm
Max. length of workpiece: 500mm, 750mm
Max. swing over cross slide: 160mm
Spindle bore: 38mm
Spindle taper: MT5
Max. cross slide travel: 140mm
Max. longitudinal stroke over tool post: 75mm
Metric thread kinds: 18
Metric pitches: 0.2-3.5mm
Inch threads kinds: 34
Inch pitches: 41/2-48 1/n”
Longitudinal-feed range: 0.08-0.56mm/r
Cross-feed range: 0.04-0.28mm/r
Max. travel of tailstock taper: 60mm
Tailstock sleeve taper: MT3
Spindle speeds range: 8 steps:90-1800r/min
Motor: 750W
Net weight (without base): 200/220kg, 230/250kg
Packing size (without stands): (L×W×H) 1450*650*1200mm 1200*650*1200mm
