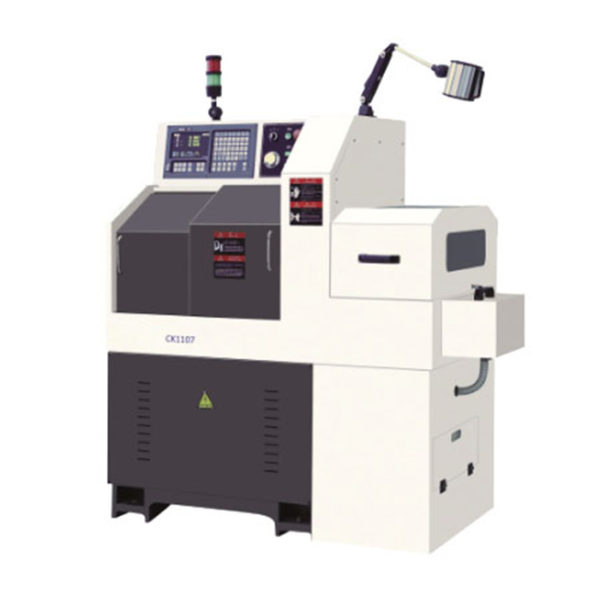

WMT CNC CK1107 Swiss Type CNC Lathe

Rated voltage: 3 phase AC 380V

Rated frequency: 50HZ

Total input power: 3.2kW

BYSK: YZ150

Minimum setting unit: 0.001mm

Minimum moving unit X: 0.0005mm

Minimum moving unit Z: 0.001mm

Cutting speed: 1–4000mm/min

X rapid travel speed: 15000mm/min

Y rapid travel speed: 15000mm/min

Z rapid travel speed: 15000mm/min

Spindle revolving speed: 50-6000r/min

Spindle center height from the ground: 980mm

Spindle motor power: 1.5kw

X stroke: 60mm (diameter value)

Y stroke: 150mm

Z stroke: 150mm

X axis servo motor power: 0.4kW

Y axis servo motor power: 0.4kW

Z axis servo motor power: 0.4kW

Guideway: Linear guideway

Cutting motor power: 0.12kW

Capacity of coolant container: 120L

Motor power: 25W

Capacity: 2L

Input air pressure: 0.4–0.6Mpa

L*W*H: 1608*1100*1573

Weight: 600kg
