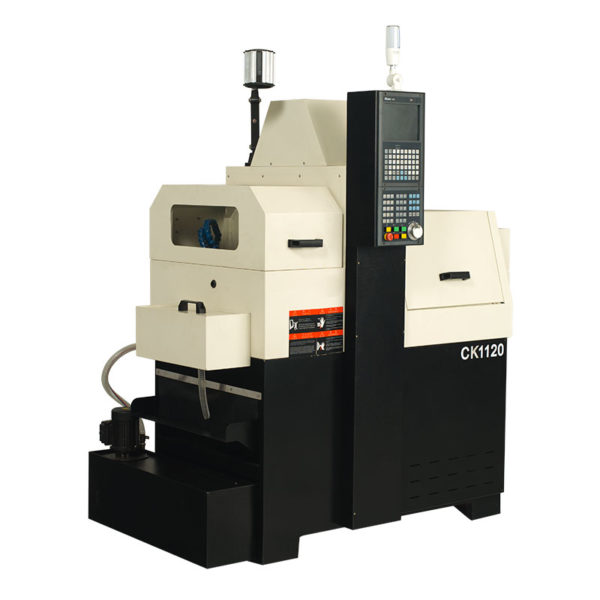

WMT CNC CK1120 Swiss Type CNC Lathe

Rated Voltage: 380V /3 phase AC Current

Rated Frequency: 50HZ

Total Input Power: 4.75kw

Min Setting Value: 0.001mm

Cutting Speed: 1–4000mm/min

X Axis Fast Feed Rate: 18000mm/min

Y Axis Fast Feed Rate: 18000mm/min

Z Axis Fast Feed Rate: 18000mm/min

Max. Bar Dia.: Φ20mm

Spindle Hole Dia.: Φ21mm

Height of spindle center from ground: 980mm

Spindle speed: 0-4000r/min

Spindle power: 2kw

Drilling Spindle Size: ER11/20mm

Cuting MotorPower: 0.09kw

Capacity of CoolingContairer: 150L

Motor Power: 25w

Capacity: 1.5L

Input Pressure of Compressed Air: 0.4–0.6Mpa

X Axis Stroke: 80mm(dia.)

Y Axis Stroke: 150mm

Z Axis Stroke: 250mm

X Axis Servo Motor Power: 0.75kw

Y Axis Servo Motor Power: 0.75kw

Z Axis Servo Motor Power: 0.75kw

L*W*H(mm): 1495*1010*1860mm, 1220kg
