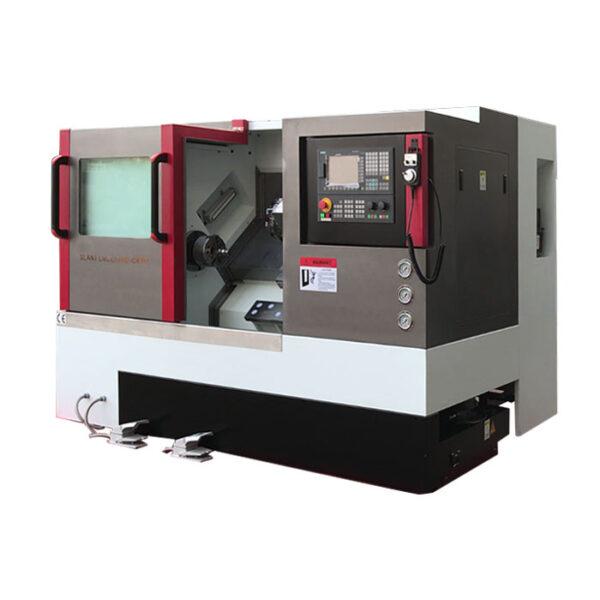

WMT CNC CK36L Slant Bed CNC Lathe (360mm)
Manufacturer: WMT CNC Model: CK36L Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. swing over bed: φ360mm
Max. swing over carriage: φ210mm
Max. cutting length: 500/750mm
Rail width: 284mm
Spindle nose: A2-5,A2-6
Spindle bore: φ56mm,(62mm)
Taper of spindle bore: 1:20
Chuck: 6″ , (8″)
Range of spindle speed: 150-4200rpm
X axis travel: 210mm
Z axis travel: 500/750mm
X/Z rapid speed: 20/20m/min
Hydraulic turret: 8
Max. section of tool: 20*20mm
Stroke of tailstock sleeve: 80mm
Diameter/ Hole of tailstock sleeve: φ60mm/MT4
Main motor power: 5.5KW/7.5KW
Coolant pump power: 370W
Overall dimensions (L*W*H): 2630/2910*1550*1750mm
Packing size (L*W*H): 2830/3130*1750*2150mm
N.W/G.W: 2700KG/3000KG
