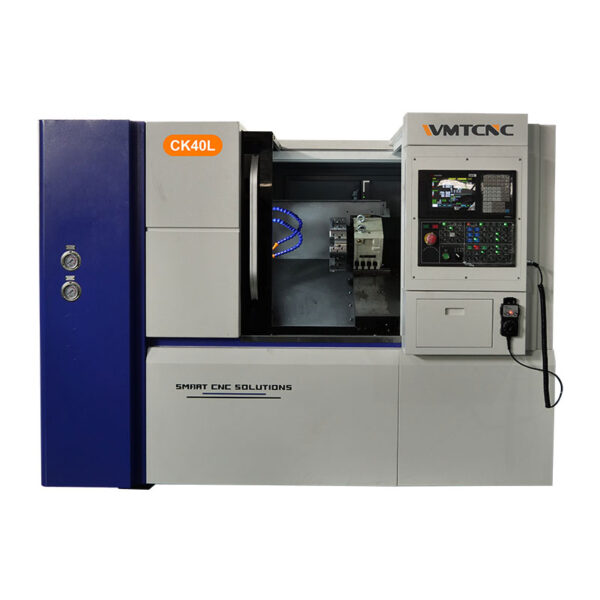

WMT CNC CK40L Slant Bed CNC Lathe (400mm)

Chuck size: 6inch

Max. swing over bed: 400mm

Max. length of workpiece: 250/350(optional)mm

Max. machining dia.: 200mm

Standard machining dia.: 160mm

Max. swing over cross slide: 210mm

Spindle bore: 55mm

Spindle hole after hydr.: 46mm

Spindle nose: A2-5

Spindle taper: MT6

Spindle speed: 4500rpm

Main motor power: 5.5kw

X axis travel: 250mm

Z axis travel: 250/350mm

X/Z rapid traverse: 20000mm/min

Tool post: 8

Slant bed degree: 35degree

Overall dimension(LxWxH): 2520×2050×1960mm

Weight: 2100kg
