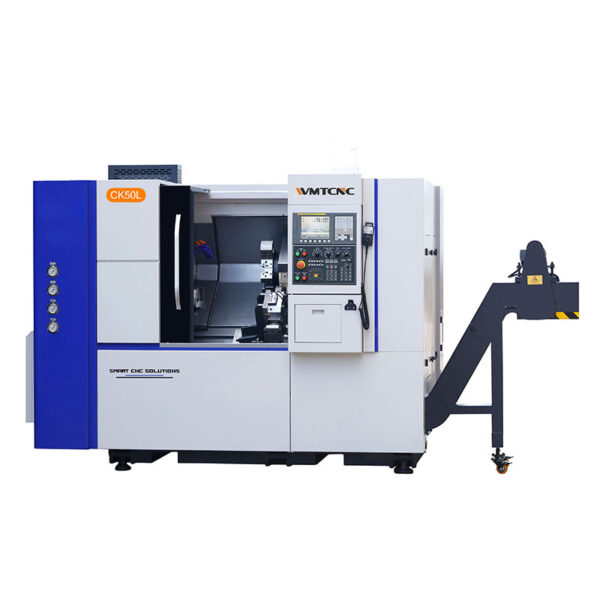

WMT CNC CK50L/750 Slant Bed CNC Lathe (500mm)
Manufacturer: WMT CNC Model: CK50L/750 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Chuck size: 8/12inch
Max. swing over bed: 500mm
Max. length of workpiece: 750mm
Standard machining dia. 200mm
Max. swing over cross slide: 360mm
Spindle bore: 62mm
Spindle hole after hydr.: 52mm
Spindle nose: A2-6
Spindle taper: φ70(1:20)
Spindle speed: 4000/2000/5500rpm
Main motor power: 7.5/11kw
X axis travel: 250mm
Z axis travel: 750mm
X/Z rapid traverse: 20000mm/min
Tool post: 8*12
Type of tailstock: Hydraulic
Taper of tailstock quill: MT4
Travel of tailstock quill: 80mm
Slant bed degree: 35degree
Overall dimension(LxWxH): 3080×2300×2350mm
Weight: 4400kg
