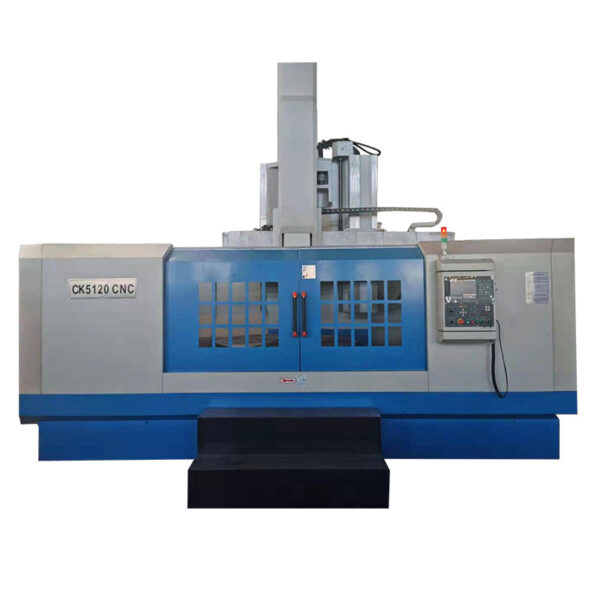

WMT CNC CK5120 CNC Vertical Lathe

Table dia.: 1800mm

Max. turning dia.: 2000mm

Max. workpiece height: 1250/1600mm

Max. workpiece weight: 8t

Table speed step: 16

Table rotation speed range: 3.2-100(5-160)r/min

Horizontal travel of toolpost (X-axis): 1110mm

Vertical travel of toolpost (Z-axis): 800/1000mm

Crossarm travel: 890mm

Main motor power: 30kW

N.W: 18.2/19.2t

Overall size(LXWXH): 3210x2850x3910/4310mm
