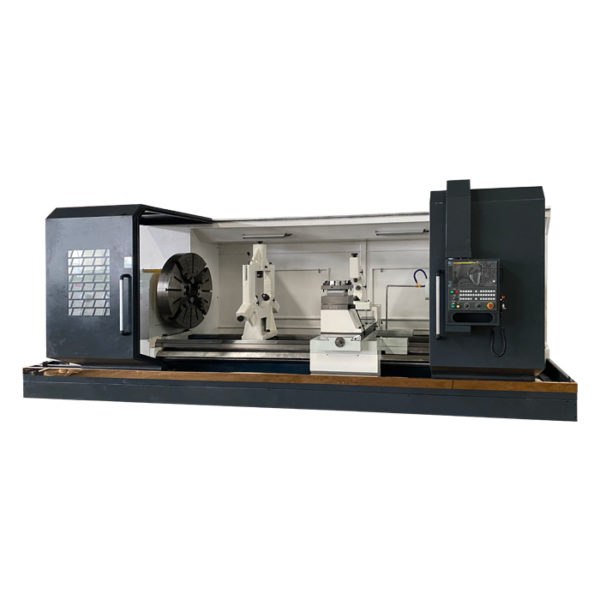

WMT CNC CK61125 Flat Bed CNC Lathe (1250mm)

Max dia.swing over bed (mm): 1250

Max dia.swing over cross slide (mm): 880

Max.length of work-piece (mm): 1500

Width of bed (mm): 755

Spindle bore (mm): 130

Power of spindle motor (kw): 22

Spindle front taper: 1:20/140

Range of spindle speed (r/min): 17-250

Max.traverse of X/Z (mm): X:580 Z:1500

X/Z rapid traverse (r/min): 3000/6000

X/Z axis motor speed (r/min): 1500/1500

X/Z axis motor torgue (N.m): 18/30

X/Z axis motor power (kw): 2.8/3.8

Tailstock quill diameter(mm): 160

Tailstock quill travel (mm): 300

Tailstock quill taper: Morse NO.6

Electric tool-post model: SLD170A

Electric tool-post dimension (mm): 300×300

Positioning accuracy (mm): 0.02

Overall dimensions (L*W*H)(mm): 4500*2300*2300

Machine weight (kgs): 10
