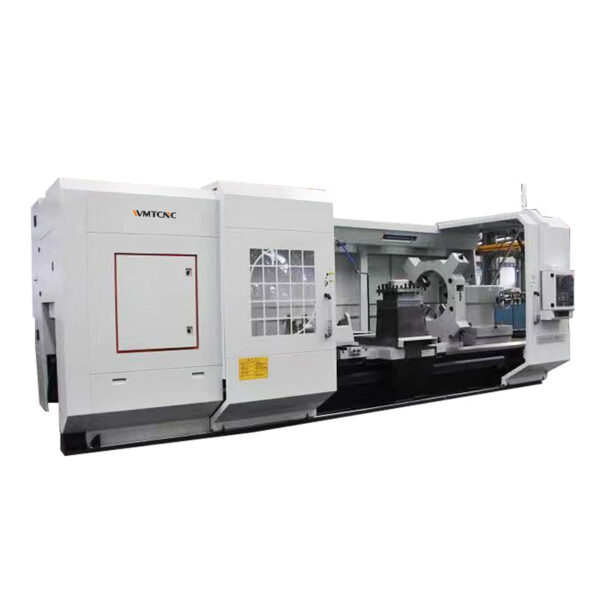

WMT CNC CK61200 Flat Bed CNC Lathe (2100mm)
Manufacturer: WMT CNC Model: CK61200 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Swing over bed: 2100mm
Swing over cross slide: 1650mm
Distance between centers: 6000mm
Guideway width: 1100mm
Max.load capacity: 20T
Spindle bore: 130mm
Spindle bore taper: 120Metric 120
Spindle nose type: 1:30
Spindle speed steps: VF:4steps(Option:HYDR:4steps)
Spindle speed range: 2-200rpm
Chuck: 4-jaw manual 1600mm
Turret/tool post: Electric turret 4 position
Tool shank size: 50×50mm
X axis travel: 850mm
Z axis travel: 6000mm
X axis rapid traverse: 4000mm/min
Z axis rapid traverse: 6000mm/min
Tailstock quill diameter: Φ280mm
Tailstock quill taper: 1:07
Tailstock quill travel: 300mm
Main spindle motor: 55KW
Coolant pump motor: 0.25KW
Machine size: 6700-13700×2900×2900mm
Net weight: 29.5T
