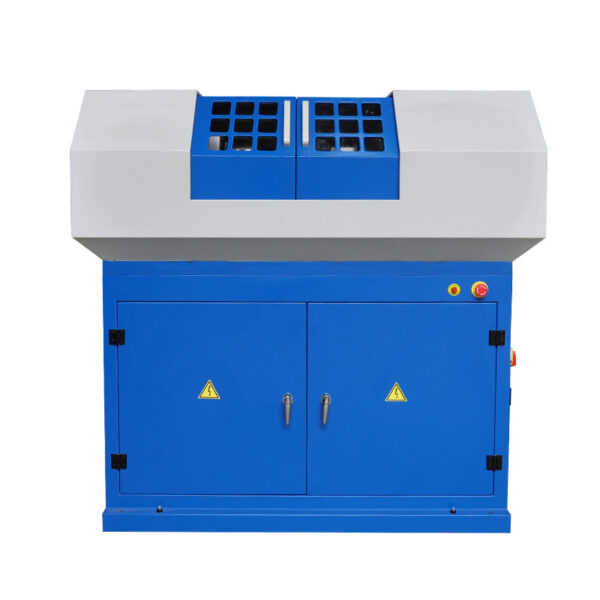

WMT CNC CK6125S/450 Flat Bed CNC Lathe (250mm)

Max. swing over bed: 250mm

Max. swing over carriage: 110mm

Distance between centers: 450mm

Chuck size: 125mm

Spindle speed: 100-3000r/min

Spindle bore: 20mm

Spindle taper: MT3

Spindle power: 1000W

X axis travel: 90mm

Z axis travel: 320mm

Max. rapid speed: 2000mm/min

Max. feed speed: 500mm/min

Feed motor: 4Nm

Position of toolpost: 4

Tailstock taper: MT2

Tailstock dia.: 30mm

Tailstock travel: 50mm

Positioning accuracy: 0.015mm

Voltage: 230/110V

N.W/G.W: 360kg/410kg

Machine size (LxWxH): 1460×760×1450mm

Packing size (LxWxH): 1630×1070×1685mm
