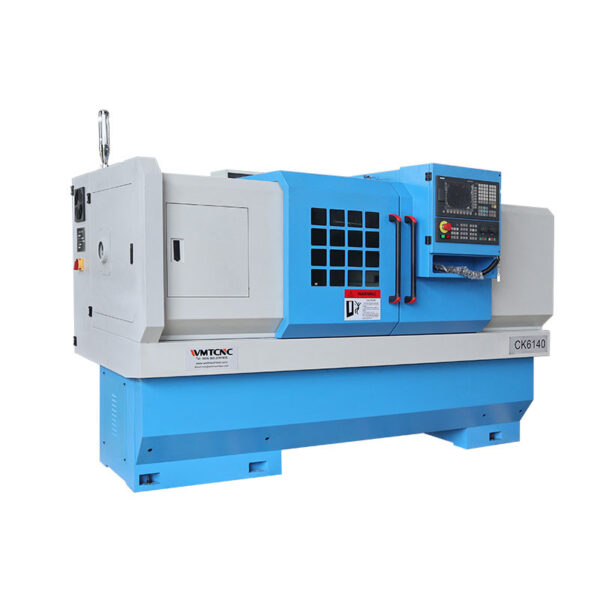

WMT CNC CK6140 Flat Bed CNC Lathe (400mm)
Manufacturer: WMT CNC Model: CK6140 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. swing over bed: Φ400mm
Max. swing over carriage: Φ240mm
Max length of work piece: 750/1000/1500mm
Rail width: 330mm
Range of spindle speed: 150-2000rpm or 60-600/280-2000rpm with 2 steps
Stations of tool post: 4/6/8 position
Spindle bore: Φ60mm
Taper of spindle bore: MT6
X-rapid speed: 6m/min
Z-rapid speed: 8m/min
Width of guide way: 330mm
X-axis travel: 250mm
Z-axis travel: 1000/1500mm
Max size of tool post: 25×25mm
Taper of tail stock: MT4
Max range of tail stock quill: 120mm
Power of main motor: 5.5kw
Packing size(LxWxH): 2420/2740/3240×1620×2100mm
Net weight: 1700kg/2100kg
