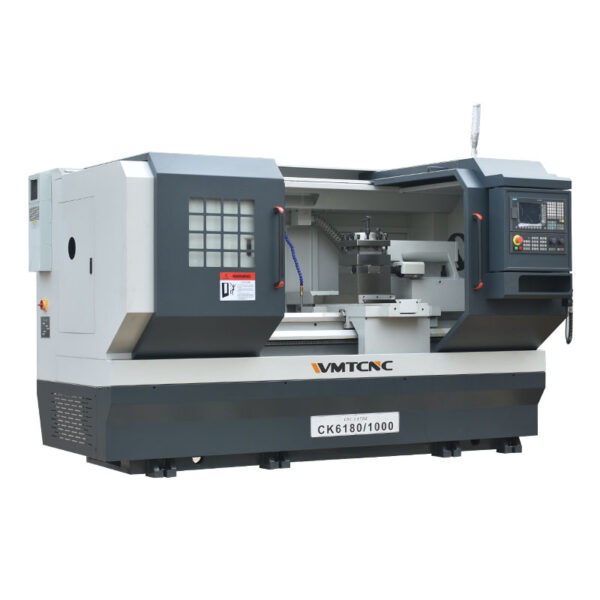

WMT CNC CK6180 Flat Bed CNC Lathe (800mm)
Manufacturer: WMT CNC Model: CK6180 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max.swing over bed: Ф800mm
Max.swing over carriage: Ф560mm
Max. cutting length: 1500/2000/3000mm
Rail width: 460mm
Spindle nose: A2-8 or A2-11
Spindle bore: Ф86mm or Ф105mm
Taper of spindle bore: Ф90mm 1:20 or Ф110mm 1:20
Chuck size: 15″
Range of spindle speed: 100-1600 or 3 steps:30-150，,10-500,150-1200rpm
X-axis travel: 380mm
Z-axis travel: 1500/2000/3000mm
X/Z rapid speed: 5/8m/min
X/Z screw: 3206/5010
Electronic turret: 4 or 6 or 8
Max.section of tool: 25x25mm
Stroke of tailstock sleeve: 235mm
Diameter/Hole of tailstock sleeve: Ф90mm/MT5
Main motor power: 11kW
Coolant pump power: 250W
Overall dimensions (L x W x H): 3320/3830/4830x1600x1830mm
Packing size (L x W x H): 3520/4030/5030x1760x2030mm
Net weight: 4100/4600/5400kg
Gross weight: 4500/5000/6000kg
