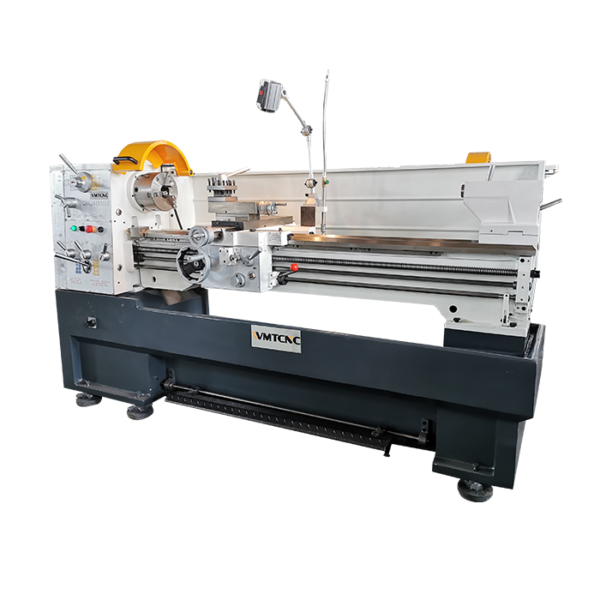

WMT CNC CM6241 Engine Lathe (2.2/3.3kw)
Manufacturer: WMT CNC Model: CM6241 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Swing over bed: 410mm
Swing over cross slide: 255mm
Swing in gap: 580mm
Length of gap: 19mm
Distance between centers: 1000mm /1500mm
Center height: 205mm
Width of bed: 250mm
Spindle nose: D1-6
Spindle bore: 52mm
Taper of spindle bore: MT6
Range of spindle speed: 16 changes 45-1800r/min
Max.travel of cross slide: 210mm
Leadscrew pitch: 4T.P.I.
Max.Section of tool: 20×20mm
Longitudinal feeds range: 0.05-1.7mm/rev(0.002″-0.067″/rev)
Cross feeds range: 0.025-0.85mm(0.001″-0.0335″/rev)
Inch threads range: 45kinds 2-72T.P.I
Dia.of tailstock sleeve: 50mm
Travel of tailstock sleeve: 120mm
Taper of tailstock sleeve: MT4
Power of main motor: 2.2/3.3kw(optional 3.0/4.5kw)
Power of coolant pump: 90w
Overall dimension: 1940/2440×850×1300mm
Packing size: 2060/2560×900×1640mm
N.W/G.W: 500/1750kgs: 550/1800kgs
