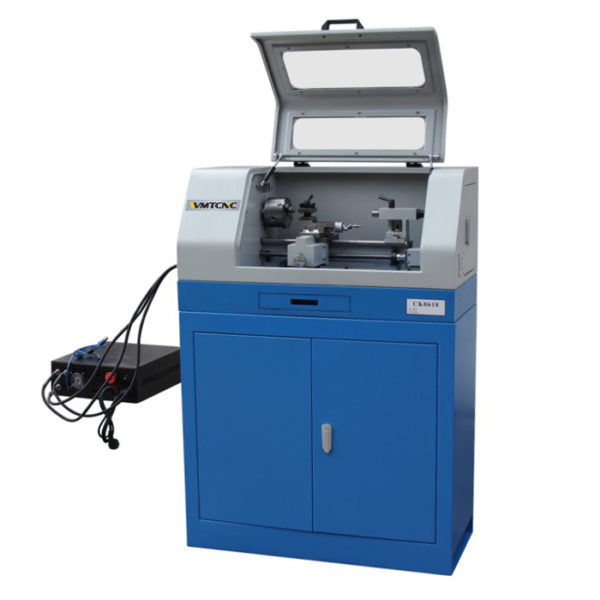

WMT CNC CNC180 Flat Bed CNC Lathe (180mm)
Manufacturer: WMT CNC Model: CNC180 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max swing over bed: 180mm
Max.swing over carriage: 300/350mm
Max.length of work pieces: 300mm
Spindle bore: 20mm
Spindle taper: MT3
Spindle speed: 50-2250rpm
Metric thread cutting: 0.5-2.5mm
Inch thread cutting: 12-52TPI
Electric toolpost: 4-position
X Travel: 60mm
Z Travel: 250mm
X Moving speed: 800mm/min
Z Moving speed: 1200mm/min
Spindle motor power: 400w (optional:550w)
X Motor power: 1.5NM
Z Motor power: 2NM
Min. setting unit: 0.001mm
Tailstock diameter: 20mm
Tailstock Travel: 50mm
Tailstock taper: MT2
Overall size: 900X400X1250mm
Net weight: 90kg
