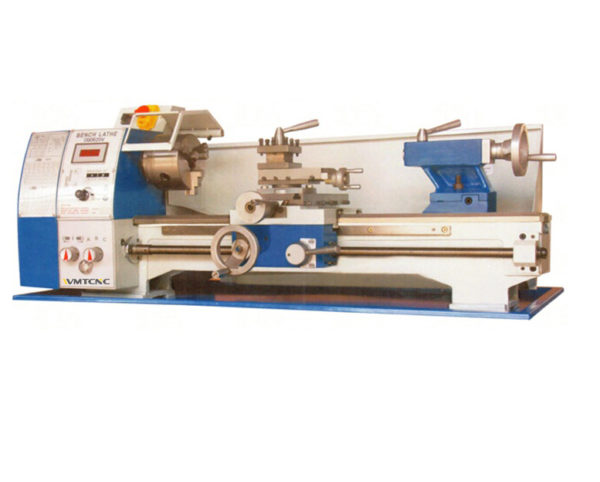

WMT CNC CQ0625 Bench Lathe (750W)
Manufacturer: WMT CNC Model: CQ0625 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Distance between centers: 400/550mm
Swing over bed: 250mm
Spindle accuracy: 0.01mm
Spindle bore: 26mm
Range of spindle speed: 125-2000rpm
Spindle taper: MT4
Inch thread can be cut: 8-56TPI
Metric thread can be cut: 0.4-3.5mm
Taper of tailstock quill: MT2
Chuck diameter: 125mm
Cross slide travel: 115mm
Electricity: 230V/50HZ or 120V/60HZ
Motpr power: 750W
N.W./G.W.: 115kgs/145kgs
Packing size: 1050/1150x560x570mm
