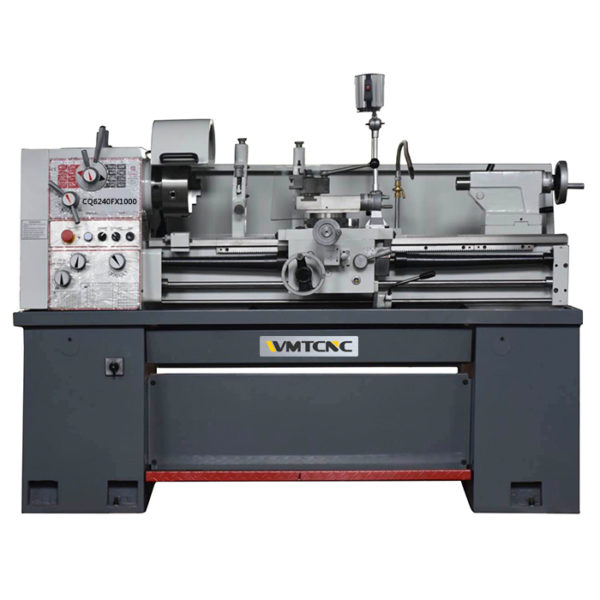

WMT CNC CQ6240F Bench Lathe (45-1800rpm)

Max. swing over bed: 400mm

Max. swing over cross slide: 264mm

Max. swing in gap: 550mm

Center height: 200mm

Max. length of workpiece: 1000mm

Width of bed: 206mm

Max. section of cutting tool: 16x16mm

Cross slide travel: 150mm

Spinde bore: φ 51mm

Spindle taper: MT5 or MT6

Spindle nose: D4 or D5

Spindle speed: 45-1800rpm 16 steps

Threads metric pitches: 0.4-7mm/28 kinds(Metric lathe),0.45-7.5mm/22 kinds(Inch lathe)

Threads inch pitches: 4-56TPI/28 kinds(Metric lathe),4-112TPI/40 kinds (Inch lathe)

Longitudinal feeds: 0.043-0.653mm/rev (Metric lathe),0.0012-0.0297in/rev (Inch lathe)

Tailstock quill travel: 100mm

Tailstock quill diameter: 45mm

Tailstock quill taper: MT3

Coolant pump power: 40W

Main motor power: 1.5/2.4KW

Packing size: 1950x750x1500mm

N.W/G.W: 700/800kg
