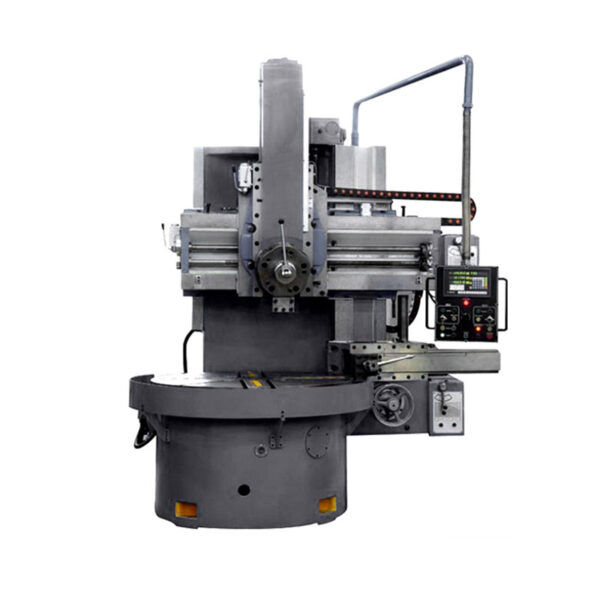

WMT CNC CS5112D Vertical Lathe (6.3-200rpm)

Table dia.: 1000mm

Max. turning dia.: 1250mm

Max. workpiece height: 1000/1200/1400mm

Max. workpiece weight: 3.2t

Table speed range: 6.3-200r/min

Table rotation speed step: 16

Vertical toolpost feed range: 0.8-86 r/min

Vertical side toolpost feed step: 12

Horizontal travel of vertical toolpost: 700mm

Vertical travel of vertical toolpost: 650mm

Horizontal travel of side toolpost: 500mm

Vertical travel of side toolpost: 900mm

Crossam ram travel: 650/850/1050mm

Tool bar section size(Lx W): 30x40mm

Main motor power: 22kw

Feeding motor power: 1.3/1.8kw

N.W: 9.5t

Overall size(LXWXH): 2277x2540x3403mm
