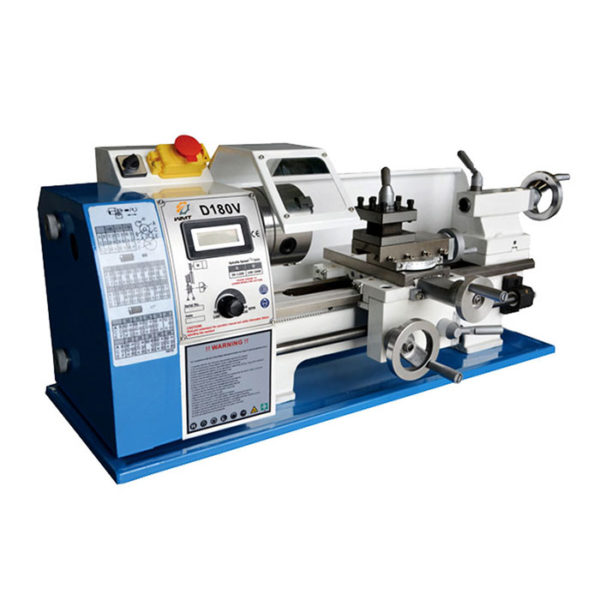

WMT CNC D180V Variable Lathe (450W/600W)

Max. swing over bed: 180mm

Max. swing over cross slide: 110mm

Max. carriage slide travel: 75mm

Max. carriage travel: 195mm

Distance between centers: 300mm

Width of bed: 100mm

Spindle bore: 21mm

Spindle taper: MT3

Spindle speed: Variable: 50-2500rpm

Range of metric threads: 10 kinds: 0.5-3mm

Max. travel of tailstock quill: 60MM

Tailstock taper: MT2

Motor power: DC motor:450W or 600W

N.W./G.W.: 60/70kgs

Machine size (LXWXH): 740x390x370mm

Packing size: 800x480x450mm
