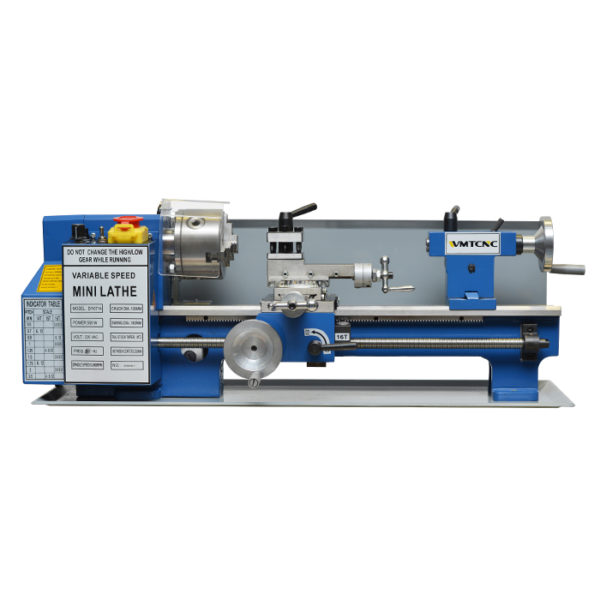

WMT CNC DIY0714 Variable Lathe (400 / 550W)
Manufacturer: WMT CNC Model: DIY0714 Guarantee: 12 Month - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Distance between centers: 350mm
Swing over bed: Φ180mm
Taper of spindle bore: MT3
Spindle bore: Φ20mm
Step of spindle speeds: Variable speed
Range of spindle speeds: 50-2500rpm
Range of inch threads: 12-52T.P.I
Range of metric threads: 0.5-2.5mm
Travel of cross slide: 65mm
Taper of tailstock quill: MT2
Main Motor: 400/550W
Packing size: 810×310×370mm
Net/gross weight: 45kg
