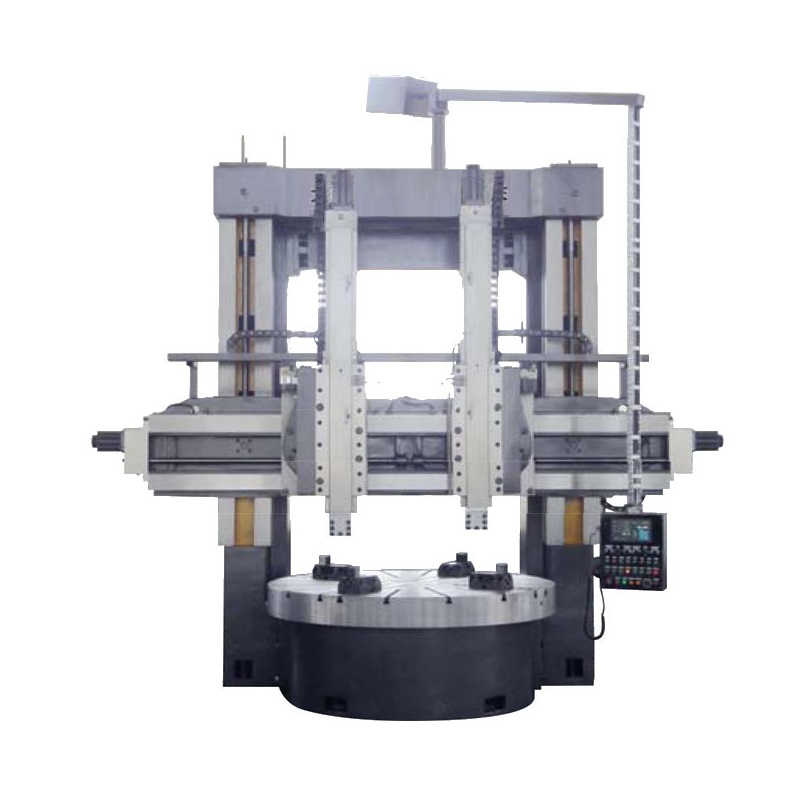

WMT CNC DVT5235C Vertical Lathe (2-63/0.4-40rpm)

Table dia.: 3150mm

Max. turning dia.: 3500mm

Max. workpiece height: 2000/2500/3150mm

Max. workpiece weight: 20/32t

Table speed step: 16(II stepless)

Table rotation speed range: 2-63/0.4-40r/min

Max. torque of table: 63/80KN.m

Horizontal travel of toolpost: 20-2030mm

Vertical travel of toolpost: 1000/1250/1600mm

Crossam travel: 1650/2150/2750mm

Main motor power: AC55/DC75kw

N.W: 53/58/63t

Overall size(LXWXH): 6650x6300x5270/5770/6500mm
