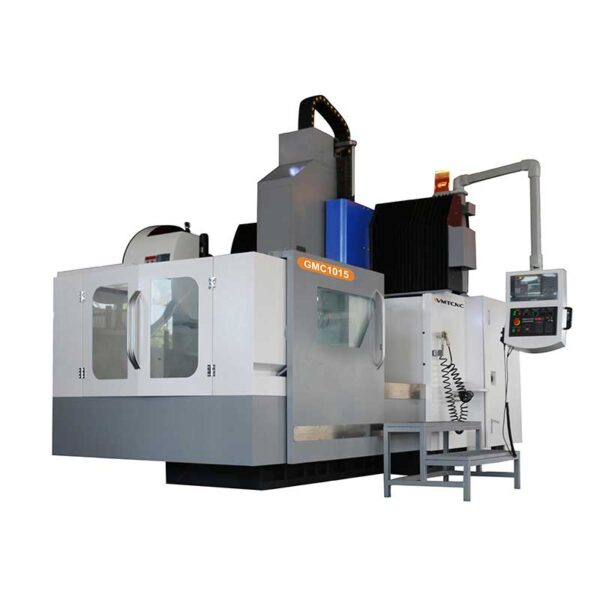

WMT CNC GMC1015 Gantry CNC Milling Machine (40kVA)
Manufacturer: WMT CNC Model: GMC1015 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Worktable size: 1600×800mm
T-slot: 22×5×140mm
Max. loading of worktable: 1800kg
Double column width: 950mm
Spindle nose to table distance: 180-800mm
Rail type: Linear Guideway
Spindle taper: BT50-155
Spindle speed: 8000rpm
Main motor power: 18.5/15kw
X axis travel: 1500mm
Y axis travel: 1000mm
Z axis travel: 620mm
X/Y/Z rapid traverse: 20/20/15m/min
Max.weight of tool: 15kg
Max.feed speed: 10000mm/min
Power: 40kVA
Overall dimension(LxWxH): 4800×4600×4400mm
Weight: 15000kg
